Six Heads Glue Dispensing Robot 50Hz - 60Hz Automated Glue Dispenser For Back Lit Panel Light

Name: Six Heads Glue Dispensing Robot 50Hz - 60Hz Automated Glue Dispenser For Back Lit Panel Light
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: HTD-600-6
Availability: InStock

Brand Name:	GDS
Model Number:	HTD-600-6
MOQ:	1 PIECE
Price:	Contact US
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Glue Dispensing Robot

Place Of Origin:

Guangdong, China

Brand Name:

GDS

Applicable Industries:

Manufacturing Plant

Condition:

New

After-sales Service Provided:

Field Installation, Commissioning And Training, Video Technical Support, Online Support

Port:

Xiaolan

Packaging Details:

plywood case

Supply Ability:

30PCS/Month

Highlight:

Six Heads Glue Dispensing Robot

Glue Dispensing Robot 50Hz

60Hz Automated Glue Dispenser

Product Description

multi-heads automatic glue dispensing robot for back-lit panel light six heads glue dispenser

Machine Description

this automatic glue dispensing robot is speacially deisgned for back-lit panel light. Put the panel light on the platform by the designed fixture, the gluing nozzle move as programmed in straight line, then the glue will be applied on the panel board perfectly.

Machine Features

Floor stand design with castor, easy to move to match assembly line
Fixed working platform, convenient to pick and place work-piece
wide working range(600*600MM), can fit for one piece panel
program setting is easy to learn and operate;
Glue flow is stable without leakage anddrawing.

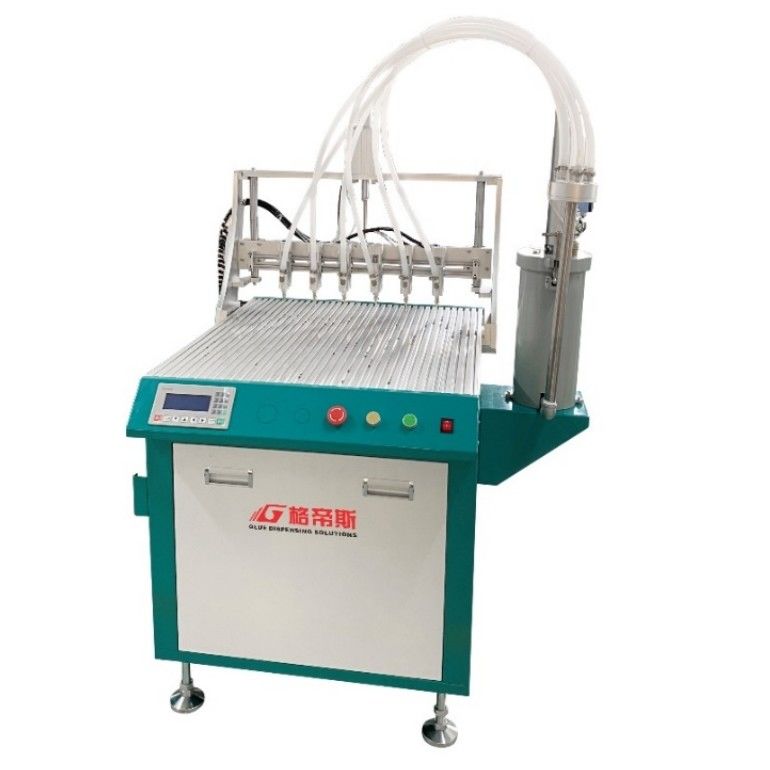

Six Heads Glue Dispensing Robot 50Hz - 60Hz Automated Glue Dispenser For Back Lit Panel Light 0

Technical Parameters

Model	HTD-600-6
MCU	Text Controller
Programming	Teaching Programming
Drive Mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	600600100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	About 10000 units
Dimension(LWH)	7006501200mm
Weight	135Kg
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

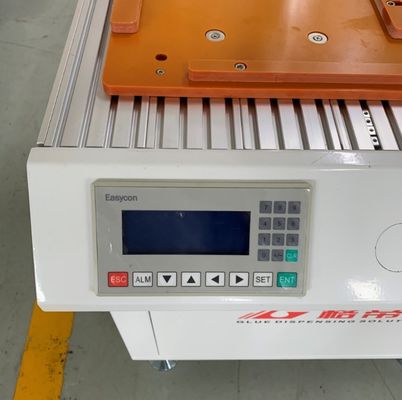

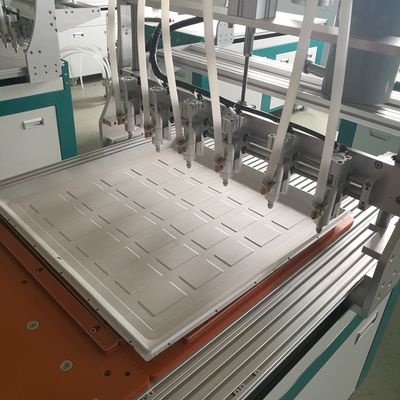

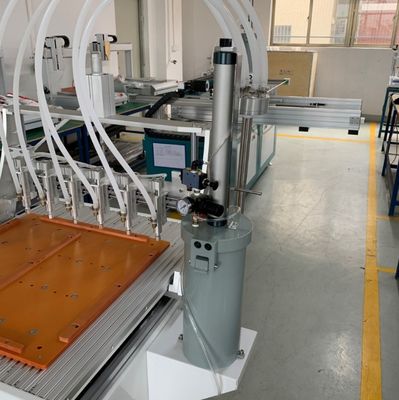

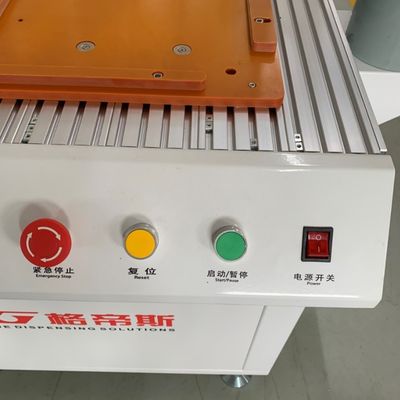

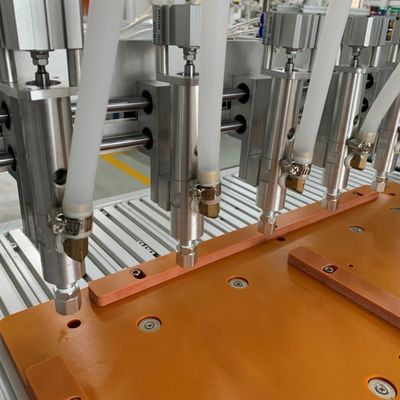

Machine Details

Six Heads Glue Dispensing Robot 50Hz - 60Hz Automated Glue Dispenser For Back Lit Panel Light 1
