Multi Heads Glue Dispensing Robot Customized Automatic Glue Dispenser

Name: Multi Heads Glue Dispensing Robot Customized Automatic Glue Dispenser
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: HTD-1265
Availability: InStock

Brand Name:	GDS
Model Number:	HTD-1265
MOQ:	1 PIECE
Price:	CONTACT US
Delivery Time:	7 working days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Glue Dispensing Robot

Application:

2x4 Panel Light

Function:

Dispensing Silicone In Straight Lines

After-sales Service Provided:

On-line Or On-site

Warranty:

1 Year

Package:

Plywood Case

Packaging Details:

polywood case

Supply Ability:

30 Pieces/Month

Highlight:

Multi Heads Glue Dispensing Robot

Glue Dispensing Robot Customized

Customized Automatic Glue Dispenser

Product Description

multi-heads glue dispensing robot automatic glue dispenser for 600*1200mm panel assembly

Machine description

This machine is for 600*1200mm and below size back-lit panel light gluing. With this machine, glue can be applied at the panel board, then arrange other workers to put the PCB on the glue. Standard machine is with 6 dispensing heads. If require more, we can customise that. This machine is only part of back-lit panel light assembly. We also have many other machine required, like automatic gluing and PCB fixing machine,automatic screw locking machine etc.

Machine features

Floor stand design with castor, easy to move to match assembly line
Fixed working platform, convenient to pick and place work-piece
wide working range(600*1200MM), can fit for one piece panel
program setting is easy to learn and operate;
Glue flow is stable without leakage and drawing.

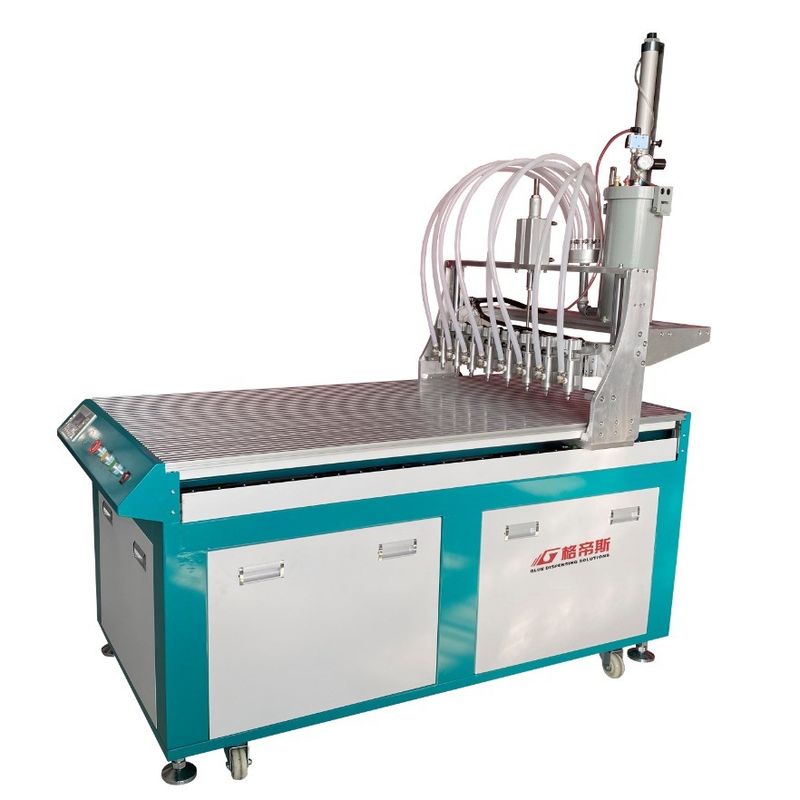

Multi Heads Glue Dispensing Robot Customized Automatic Glue Dispenser 0

Technical parameters

Model	HTD-1265
MCU	Text Controller
Programming	Teaching Programming
Drive Mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	6001200100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	About 10000 units
Dimension(LWH)	L2200W800H1200mm
Weight	220Kg
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

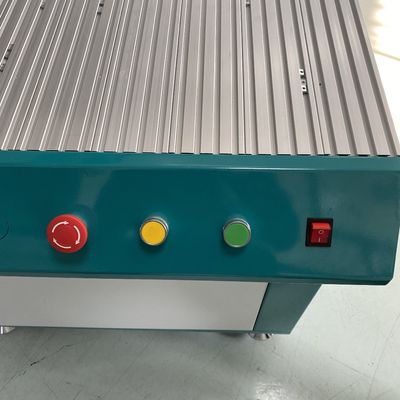

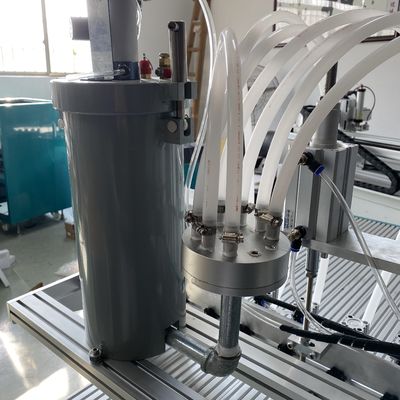

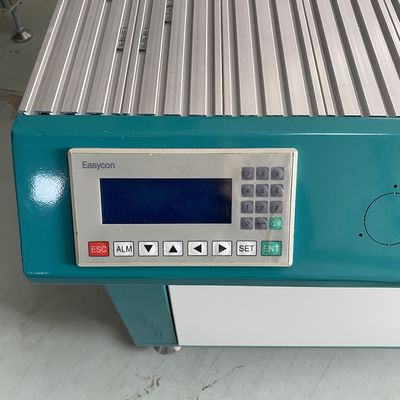

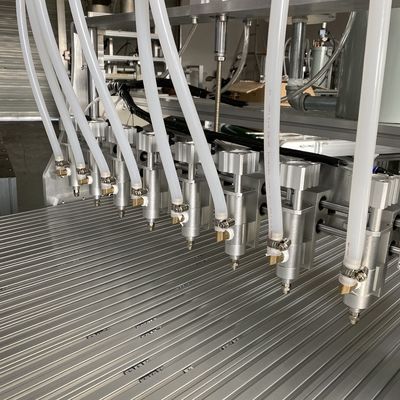

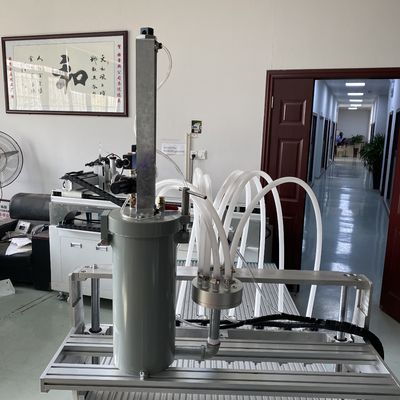

Machine details

Multi Heads Glue Dispensing Robot Customized Automatic Glue Dispenser 1
