Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM

Name: Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: HTD-1265-6
Availability: InStock

Brand Name:	GDS
Model Number:	HTD-1265-6
MOQ:	1 PIECE
Price:	CONTACT US
Delivery Time:	10 working days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Glue Dispensing Machine

Application:

Back-lit Panel Light

Function:

Dispensing Silicone

Warranty:

1 Year

EXW Report:

Test Video Available

After-sales Service Provided:

On-line Or On-site

Packaging Details:

PLYWOOD CASE

Supply Ability:

30PCS/MONTH

Highlight:

Floor Stand Glue Dispensing Machine

Glue Dispensing Machine Multi Heads

Adhesive Dispensing Systems 600*1200MM

Product Description

back-lit panel light automatic glue dispensing machine with multi-heads for 2by2 2by4 panel light

back-lit panel light assembly requires glue application on the back of panel board. If it's done manually, this process will take much labor cost, and the gluing performance may be not good enough. GDS designed multi-heads glue dispensing machine specifically for back-lit panel. It can glue for 6 strips at the same time, more dispensing heads can be added if required. Compared with manual operation, this automatic glue dispenser can greatly increase efficiency and save labor cost.

Machine Features

Floor stand design with castor, easy to move to match assembly line
Fixed working platform, convenient to pick and place work-piece
wide working range(600*1200MM), can fit for one piece panel
program setting is easy to learn and operate;
Glue flow is stable without leakage and drawing.

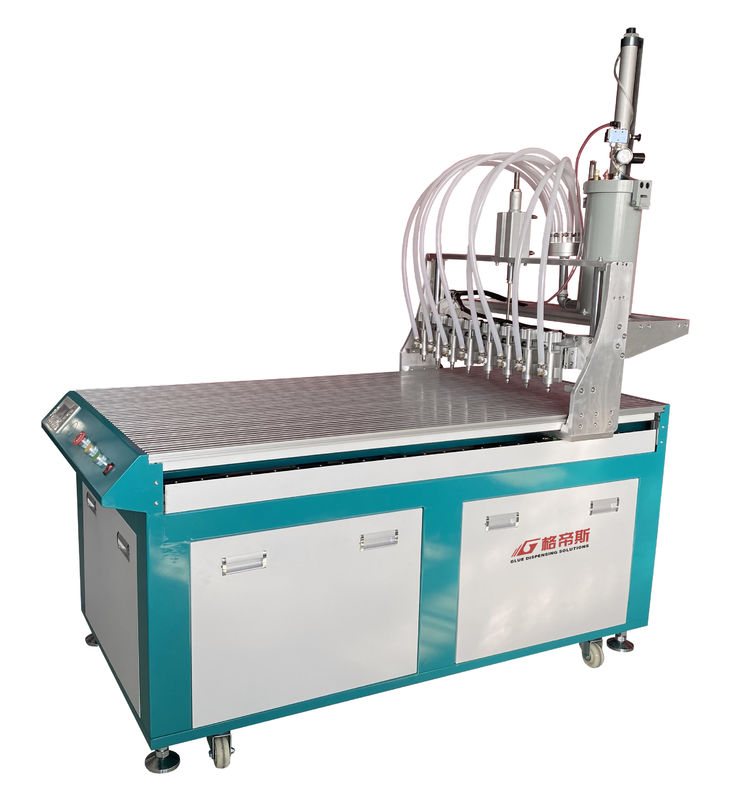

Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM 0

Technical Parameters

Model	HTD-1265-6
MCU	Text Controller
Programming	Teaching Programming
Drive Mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	6001200100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	About 10000 units
Dimension(LWH)	L2200W800H1200mm
Weight	220Kg
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

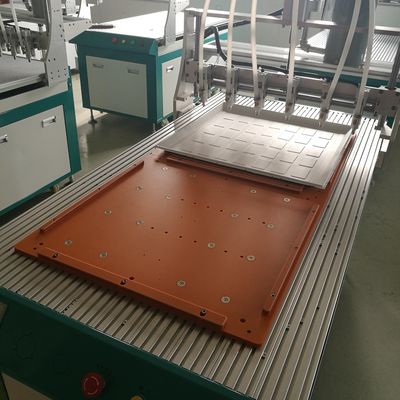

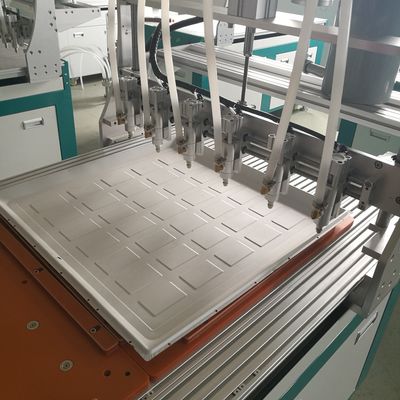

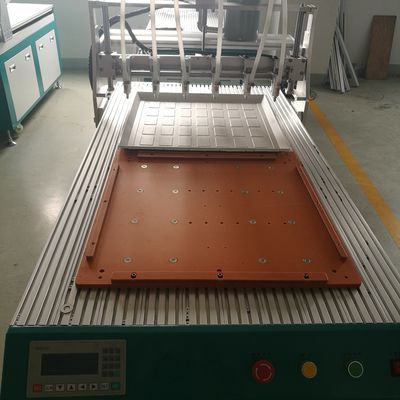

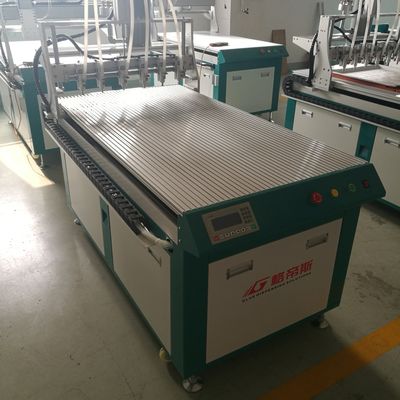

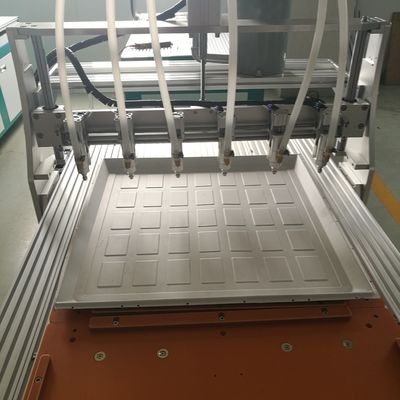

Machine Details

Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM 1

Floor Stand Glue Dispensing Machine Multi Heads Adhesive Dispensing Systems 600*1200MM 3
