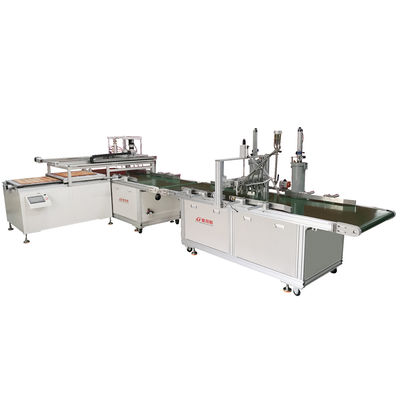

ceiling led panel slim square frame flat backlit light automatic customized assembly line

The GDS automated assembly system is engineered to streamline the production of back-lit LED panel lights, offering a comprehensive solution for high-precision PCB strip attachment and panel board handling. Designed to meet the evolving demands of modern LED manufacturing, this system integrates advanced automation technologies to ensure efficiency, accuracy, and scalability.

Key Features & Capabilities:

1. Automated Glue Dispensing & PCB Attachment

   • Precision Glue Application: Equipped with a high-accuracy dispensing system, the GDS machine ensures uniform adhesive application on the LED panel board, optimizing bonding strength while minimizing material waste.

2. End-to-End Automation

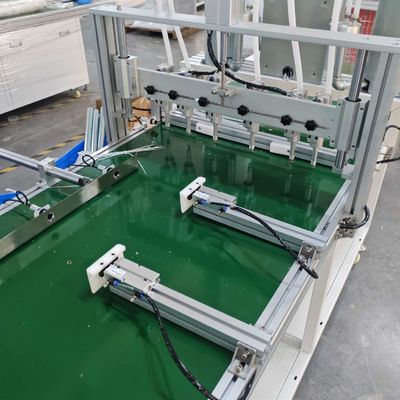

   • Auto-Loading/Unloading: The system incorporates a dual-station conveyor mechanism for continuous operation. It automatically loads raw panel boards and unloads finished products, reducing manual intervention and boosting throughput.

   • Modular Design: Compatible with panel sizes ranging from 300x300mm to 1200x2400mm (customizable), accommodating diverse product specifications.

   • Customizable Solutions

     • Flexible Configuration: The GDS system can be tailored to client-specific requirements, including integration with existing production lines, custom tooling for unique PCB shapes, or scalability for high-volume output

     • Energy Efficiency: Optimized motion control and low-power components reduce operational costs while maintaining eco-friendly production standards.

• Reduced Labor Dependency: Cuts manual labor by 90% compared to traditional methods, ensuring consistent output even in 24/7 operation.

Applications:
Ideal for LED panel light manufacturers seeking to automate backlight assembly processes, enhance product reliability, and scale production capacity. The GDS system is particularly suited for applications requiring delicate handling of thin-film PCBs or complex adhesive patterns in commercial lighting, automotive interiors, and architectural illumination.

Machine Features:

 1. speacially designed for back light panel

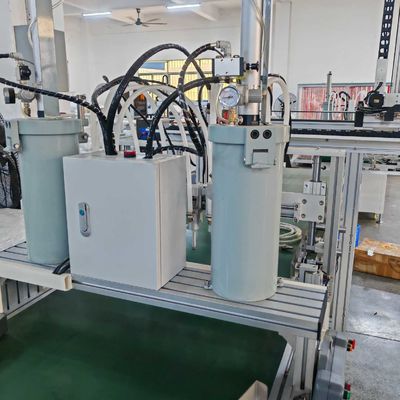

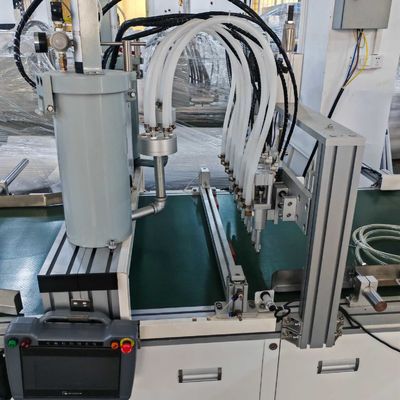

 2. automatically dispense silicone on the panel board once the board reaching the dispensing station

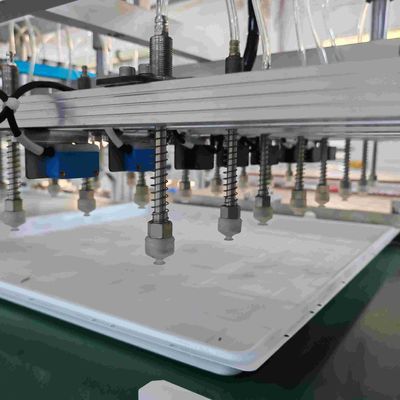

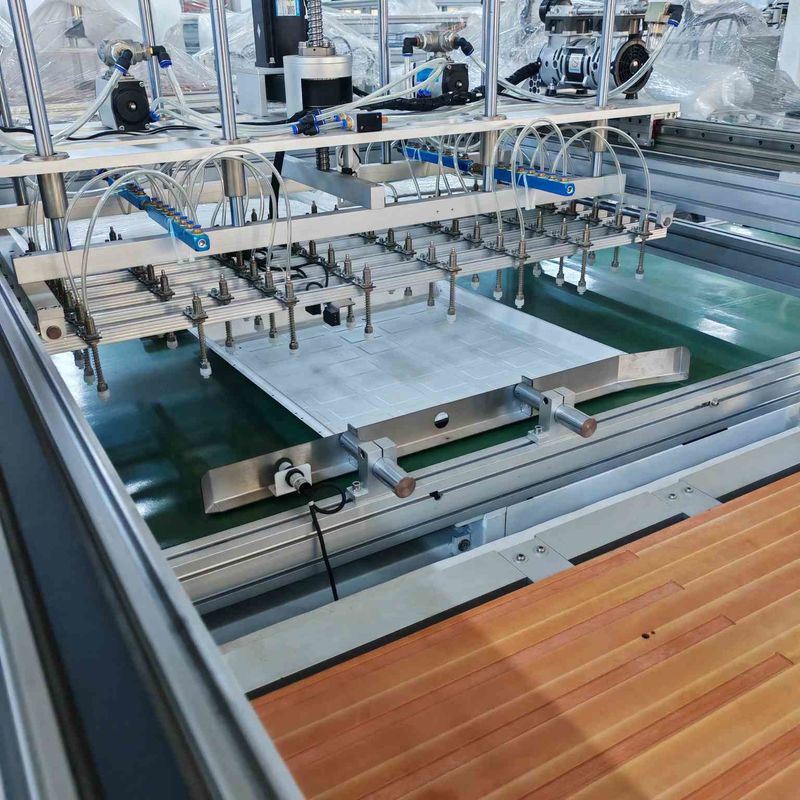

 3.  automatically stick the PCB strips on the glued board

 4.  loading and unloading device are optional depends on customer's requirement

 5. greatly save labot cost,and improve panel light quality

Machine Details
