LED PAR Light Automatic Glue Dispenser Industrial Automated Glue Dispensers High Speed

Name: LED PAR Light Automatic Glue Dispenser Industrial Automated Glue Dispensers High Speed
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: JD-40
Availability: InStock

Brand Name:	GDS
Model Number:	JD-40
MOQ:	1PIECE
Price:	CONTACT US
Delivery Time:	7 WORKING DAYS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Automatic Glue Dispenser

Application:

LED PAR Light

Function:

Dispensing Glue

EXW Report:

Test Video Available

After-sales Service:

On-line

Warranty:

1 Year

Packaging Details:

PLYWOOD CASE

Supply Ability:

30PCS/MONTH

Highlight:

LED PAR Light Automatic Glue Dispenser

Automatic Glue Dispenser Industrial

Automated Glue Dispensers High Speed

Product Description

LED PAR Light Glue Dispensing Machine High Speed automatic glue dispenser

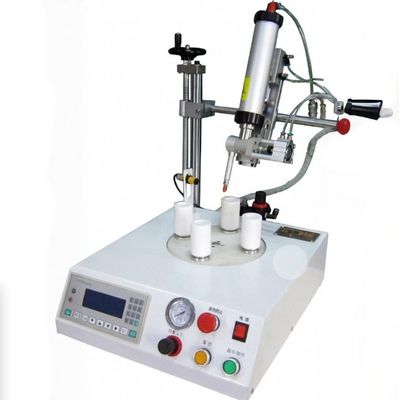

LED PAR Light Automatic Glue Dispenser Industrial Automated Glue Dispensers High Speed 0

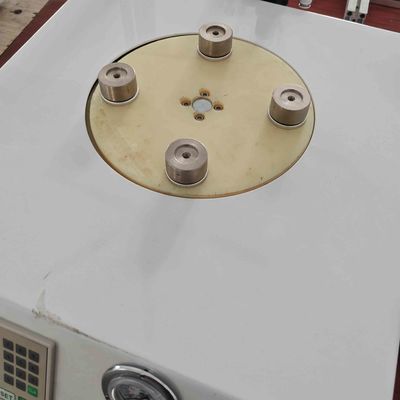

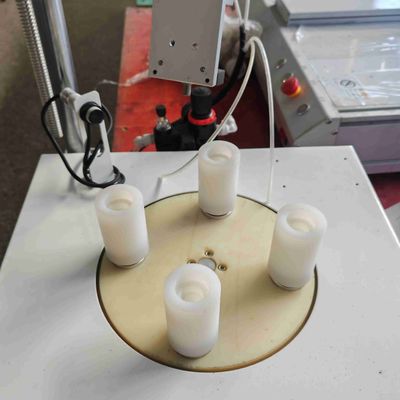

LED PAR light requires glue dispensing machine to apply glue on the light cup to connect with the glass cover. GDS Four-station round glue dispensing machine can be used for this application. Four stations are distributed by 90 degree on the revolution disc. Revolution motor rotates 90 degree each time to bring the work-piece to the gluing nozzle. Auto-rotation motor drives work-piece rotating in average speed to achieve evenly glue coating.

Machine Features:

Four work stations in cycle, the designed capacity is 1000~1500pcs/h;
Equipped work piece detector to decide gluing or skip;
Gluing track can be set as full circle, single point or segmented arc etc.
Working mode can be four-station or two-station;
It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance;

Technical Parameters

Model	JD-40
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive mode	Precise Stepping Motor
Max Dispensing Diameter	160mm(two station),110mm(four station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (LWH)	420mm532mm532mm
Weight	35Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0~40℃,Humidity: 20~90%

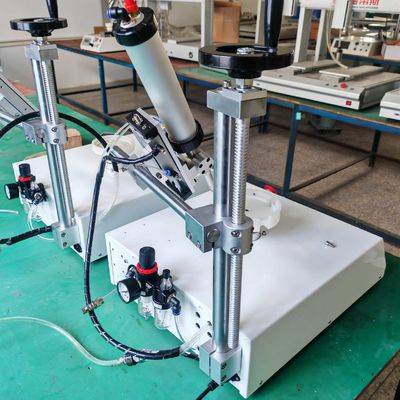

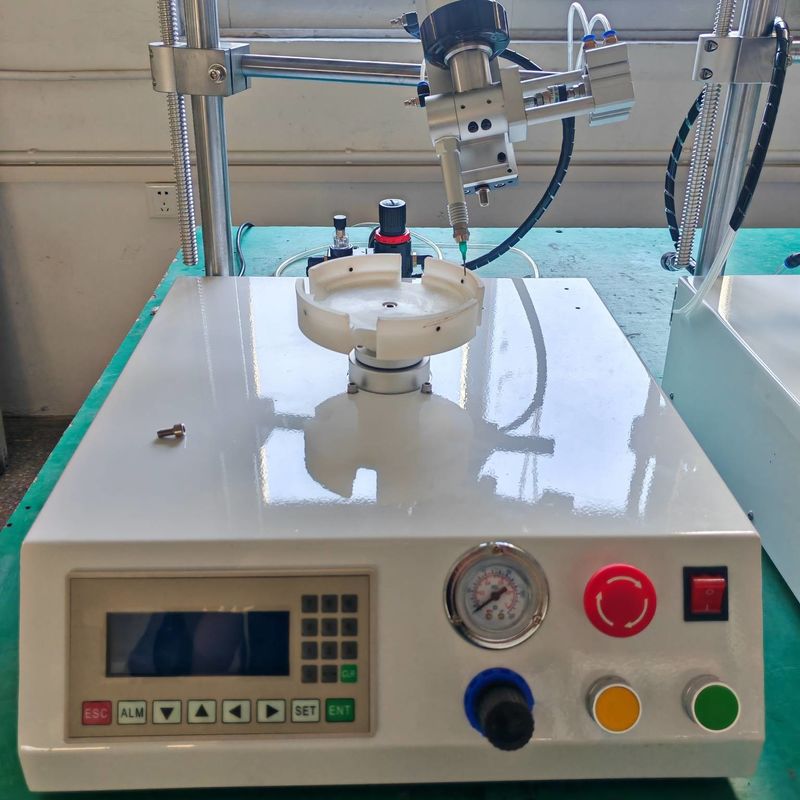

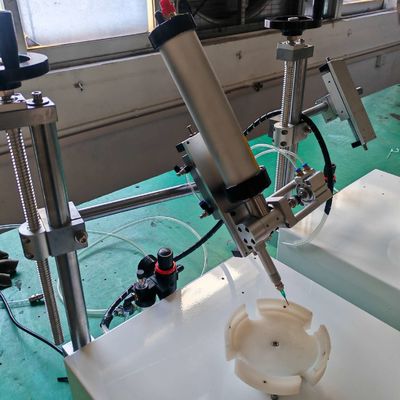

Machine Details

LED PAR Light Automatic Glue Dispenser Industrial Automated Glue Dispensers High Speed 1
