200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V

Name: 200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: JCD-90
Availability: InStock

Brand Name:	GDS
Model Number:	JCD-90
MOQ:	1PIECE
Price:	CONTACT US
Delivery Time:	15WORKING DAYS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Custom Assembly Machine

Application:

LED Bulb

Function:

Assembly LED Bulb

After-sales Service:

On-line Or On-site

EXW Report:

Test Video Available

Warranty:

1 Year

Packaging Details:

PLYWOOD CASE

Supply Ability:

15PCS/MONTH

Highlight:

200W Custom Assembly Machine

Custom Assembly Machine Semi Automatic

LED Bulb Assembly Machine 220V

Product Description

LED bulb semi-automatic assembly line punching gluing and housing assembly line

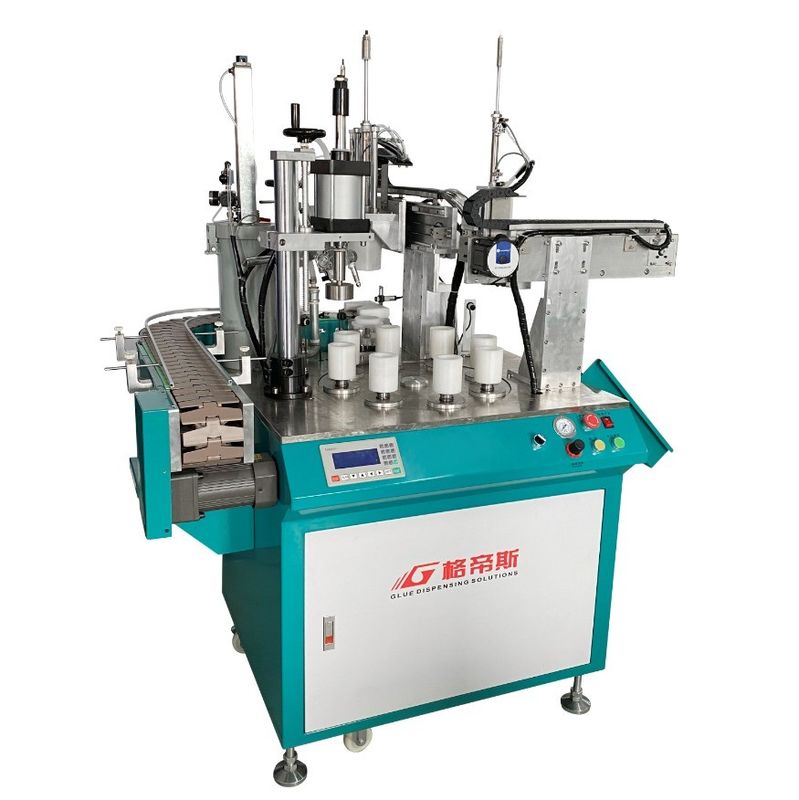

200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V 0

Machine Features

Floor stand design with caster, the machine is stable and easy to move;
Integrate punching, gluing and housing assembly process, work in cycle, the designed capacity is 1000pcs/h;
Equipped with work piece detector to decide working or skipping
Gluing track can be set as full circle, single point or segmented arc etc.
Working mode can be two-station, four-station or eight-station;
It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.

Technical Parameters

Model	JCD-90
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive mode	Precise Stepping Motor
Max Dispensing Diameter	280mm(two-station), 200mm(four -station), 110mm(eight-station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (LWH)	L680mmW700mmH1520mm
Weight	190Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0~40℃ Humidity: 20~90%

Suitable Glue: 300ml/2600ml single-component package for silicone

Applications: LED bulb

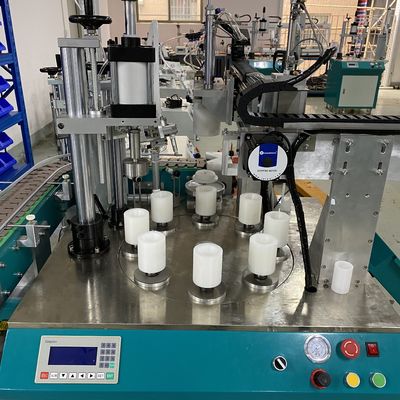

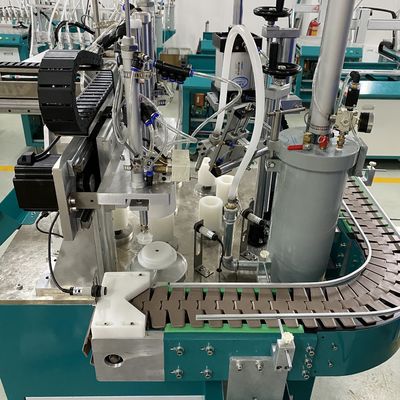

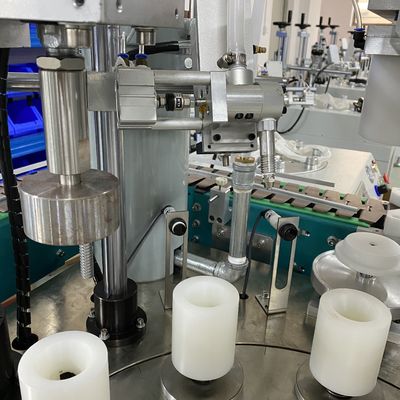

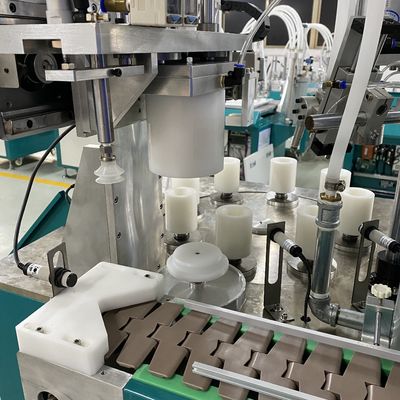

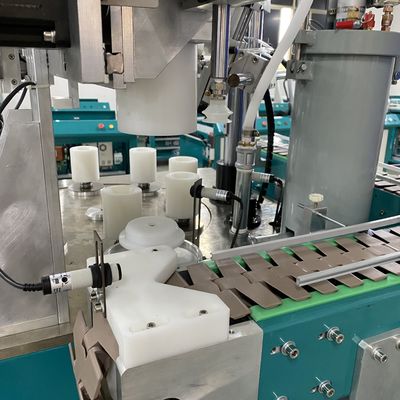

Machine Details

200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V 1
