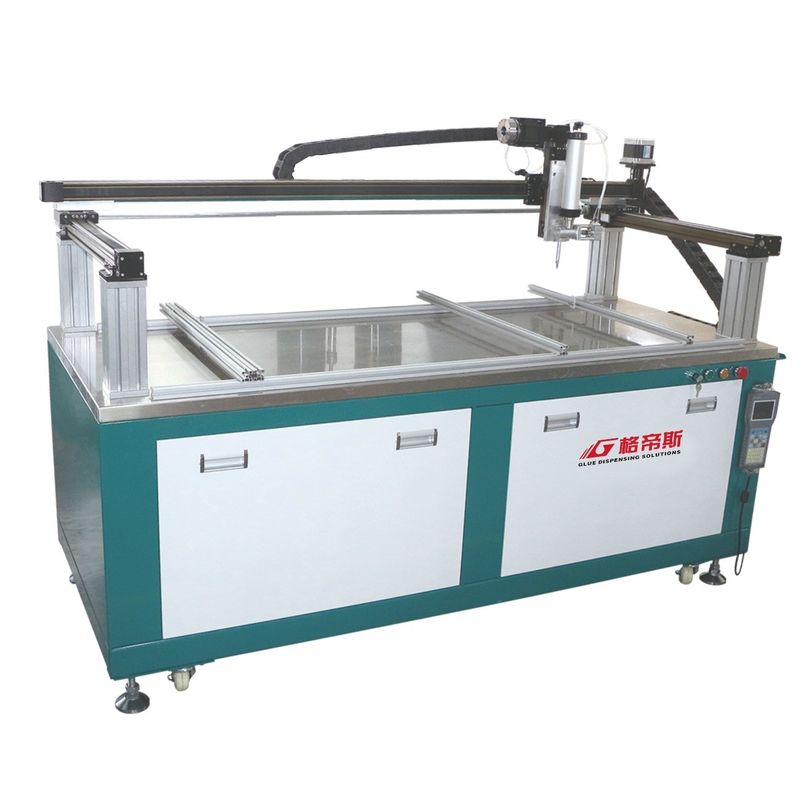

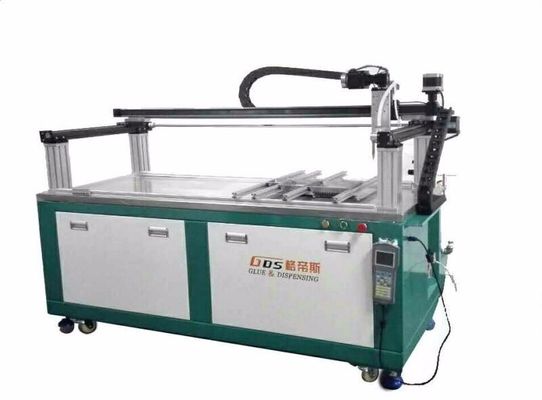

220V 3 Axis Dispensing Robot Automatic AB Glue Dispenser Customized

Name: 220V 3 Axis Dispensing Robot Automatic AB Glue Dispenser Customized
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: TD-1560
Availability: InStock

Brand Name:	GDS
Model Number:	TD-1560
MOQ:	1PIECE
Price:	CONTACT US
Delivery Time:	10 WORKING DAYS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

3 Axis Dispensing Robot

Application:

All Industries

Function:

Dispensing Glue

EXW Report:

Test Video Available

After-sales Service:

On-line

Warranty:

1 Year

Packaging Details:

PLYWOOD CASE

Supply Ability:

30PCS/MONTH

Highlight:

220V 3 Axis Dispensing Robot

3 Axis Dispensing Robot Automatic

AB Glue Dispenser Customized

Product Description

High speed glue dispenser automatic 3 Axis dispensing robot

Principle Description

u Put the work-piece on the moving platform by the designed fixture, the working platform and gluing nozzle move as programmed track to coat the work-piece accurately by compressed air. back-lit panel light size are 2 feet by 2 feet or 2 feet by 4 feet

Machine Features

Floor stand design with wide working range(1500*600MM), suitable for big size work-piece;

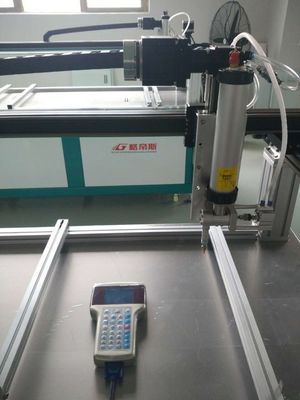

Equipped hand programming controller, easy to learn and operate;
The instructions can be copied and arrayed;
Equipped industrial PLC controller, for different glue with different settings ensure the best performance;
Glue flow is stable without leakage and drawing.

Technical Parameters

Model	TD-1560
MCU	Three-axis Movement Controller
Programming	Teaching Programming
Drive Mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	1500600100mm(Non-STD size can be customized)
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	About 10000 units
Dimension(LWH)	22008001200mm
Weight	150Kg
Working Power	AC220V/50~60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

Suitable Glue: 300ml or 2600ml single-component package for silicone, thermal conductive silicone grease, UV glue, AB glue etc.

Applications:Big size products, such as LED wash wall light, flood light, ceiling light, outdoor wall light, car headlight, smoke exhaust ventilator etc.

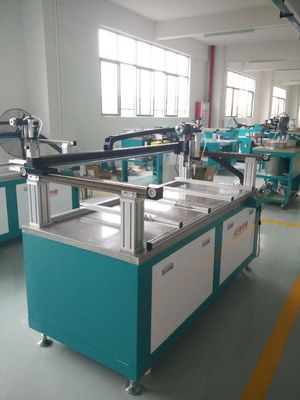

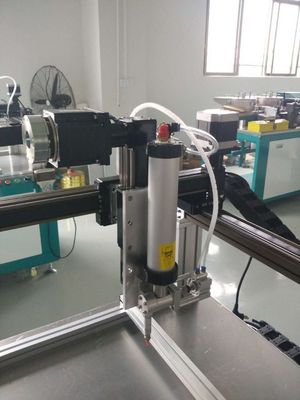

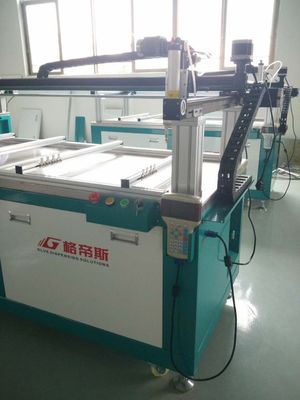

Machine Details

220V 3 Axis Dispensing Robot Automatic AB Glue Dispenser Customized 1

220V 3 Axis Dispensing Robot Automatic AB Glue Dispenser Customized 3
