AB Glue Potting Machine Inductor Capacitor Potting Machine Waterproof

Name: AB Glue Potting Machine Inductor Capacitor Potting Machine Waterproof
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: MG-8080
Availability: InStock

Brand Name:	GDS
Model Number:	MG-8080
MOQ:	1 pcs
Price:	contact us
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Glue Potting Machine

Application:

Inductor, Capacitor

Function:

Potting AB Glue

Waranty:

1 Year

After-sales Service:

On-line Or On-site

EXW Report:

Test Video Available

Packaging Details:

plywood case

Supply Ability:

30 Pieces/Month

Highlight:

AB Glue Potting Machine

Inductor Capacitor Potting Machine

Potting Machine Waterproof

Product Description

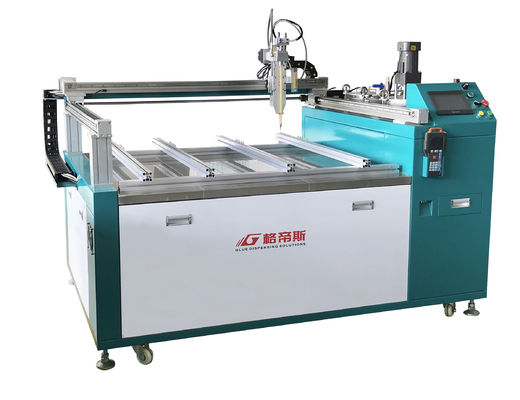

Inductor Capacitor Potting Machine for waterproof Automatic AB glue potting machine

Machine Description

AB glue are stored in two containers separately. A and B glue are injected into the mixing pipe separately through precise calculation of two metering pumps based on needs. Glue is well stirred and mixed in mixing pipe, and meanwhile the three axis mechanical hands drive glue valve to move as programmed track to the position of gluing to conduct rated glue Dispensing

Machine Features

Metering, proportion, mixing, Dispensing are realized via automatic operation;

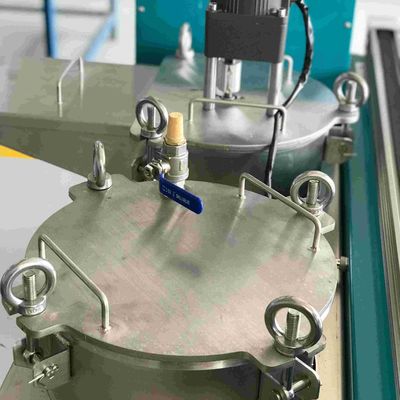

Two 304 stainless steel container to store A glue and B glue separately to make sure glue will not solidify in long term reservation;

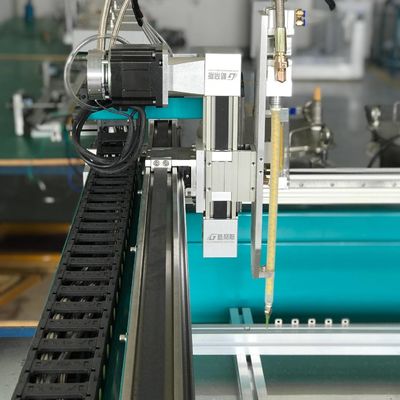

3-axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy;

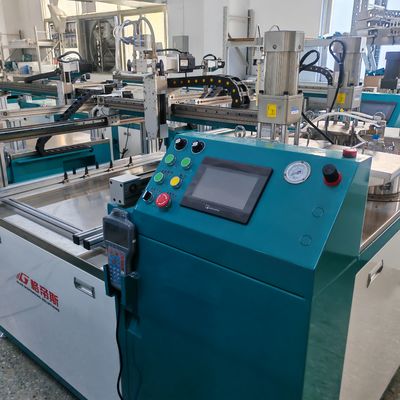

Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.

AB Glue Potting Machine Inductor Capacitor Potting Machine Waterproof 0

Technical Parameters

Model	MG-8080
Working Range	800800100 mm(XYZ)
Moving Speed	0~500mm/sec
Repeat Accuracy	±0.02mm
Mixing Proportion	100:100~100:10(1:1~10:1)
Metering Method	Precise Gear Pump or Rotary Plunger Pump
Mixing Method	Static Mixing or Dynamic Mixing(based on glue nature)
Mixing Accuracy	±1%
Glue Extrusion Accuracy	±1%
Glue Container Capacity	30L 304 Stainless Barrel
Glue Viscosity	Max≤20000CPS
Glue Additive Proportion	MAX≤100(Glue):100(Additive)(1:1)
Glue Additive Size	Max≤400tsp
Control Mode	PLC+Handhold Teaching Programming Case+Touch Screen
Programming	Teaching Programming
Program Capacity	At least 100 unit, 4000 points/unit
Transmission Method	Steeping Motor+Synchronous Belt+Linear Guide-way
Working Pressure	0.5-0.8Mpa
Working Power	AC220V 50HZ/2000W(stirring,vacuuming, heating not included)
Working Temperature	0-40℃
Working Humidity	20-90% no condensation
Dimension	1680x1200x1600 mm(WxDxH)
Weight	About 350KG

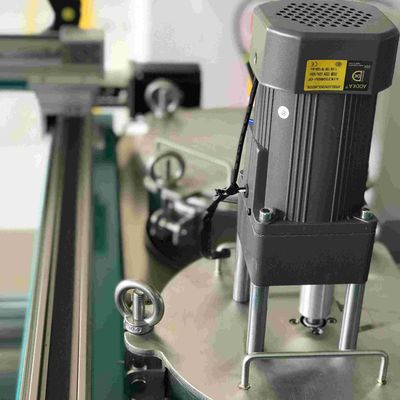

Optional Functions	Glue container stirring, pre-heating, vacuum de-foaming, automatic cleaning

Suitable Glue:

Double-component glue, such as organic silicone, epoxy, PU, acrylate etc.

Applications:

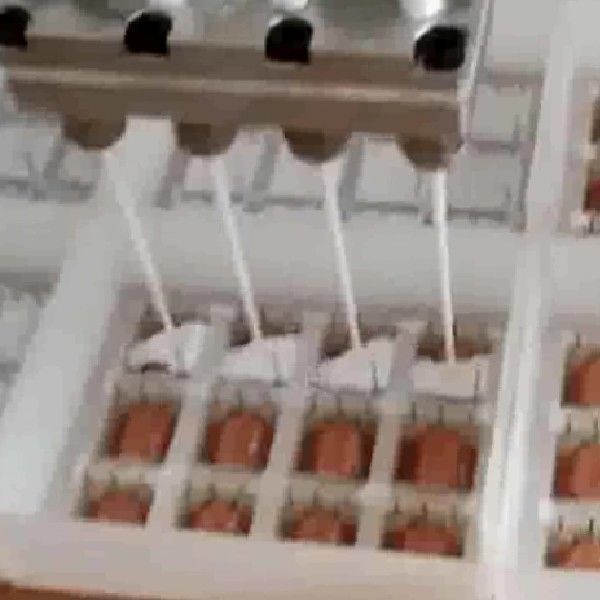

Small size products with small volume of glue, such as LED display, wall washer light, line light, Ads module, nixie tube, mutual inductor, transformer, power module, photo-voltaic module, automobile head light, daytime running light, negative-ion generator, crystal photo frame etc.

Machine Details

AB Glue Potting Machine Inductor Capacitor Potting Machine Waterproof 1
