Customized PCB Assembly Line 1000 pcs/h Automatic Assembly Equipment For T8 Glass Tube

Name: Customized PCB Assembly Line 1000 pcs/h Automatic Assembly Equipment For T8 Glass Tube
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: customized
Availability: InStock

Brand Name:	GDS
Model Number:	customized
MOQ:	1 PIECE
Price:	CONTACT US
Delivery Time:	30 WORKING DAYS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

PCB Assembly Line

Application:

LED T8 Glass Tube

Function:

Automatic Glue Dispensing / Assembly

EXW Report:

Test Video Available

After-sales Service:

On-line Or On-site

Warranty:

1 Year

Packaging Details:

PLYWOOD CASE

Supply Ability:

5PCS/MONTH

Highlight:

Customized PCB Assembly Line

PCB Assembly Line 1000 pcs/h

1000 pcs/h Automatic Assembly Equipment

Product Description

Automatic glue dispensing / assembly equipment control line for T8 glass tube

Customized PCB Assembly Line 1000 pcs/h Automatic Assembly Equipment For T8 Glass Tube 0

This project has adopted modular design, it has some basic functions:

automatic PCB glue dispensing, sticking together with glass tubes, automatic glass tube loading.

The following modules are also optional:

automatic PCB cutting module, automatic PCB sucking and loading module, automatic glass tube unloading and stacking module and the back end’s manual assembly and aging line. Clients can choose different modules according to their actual needs.

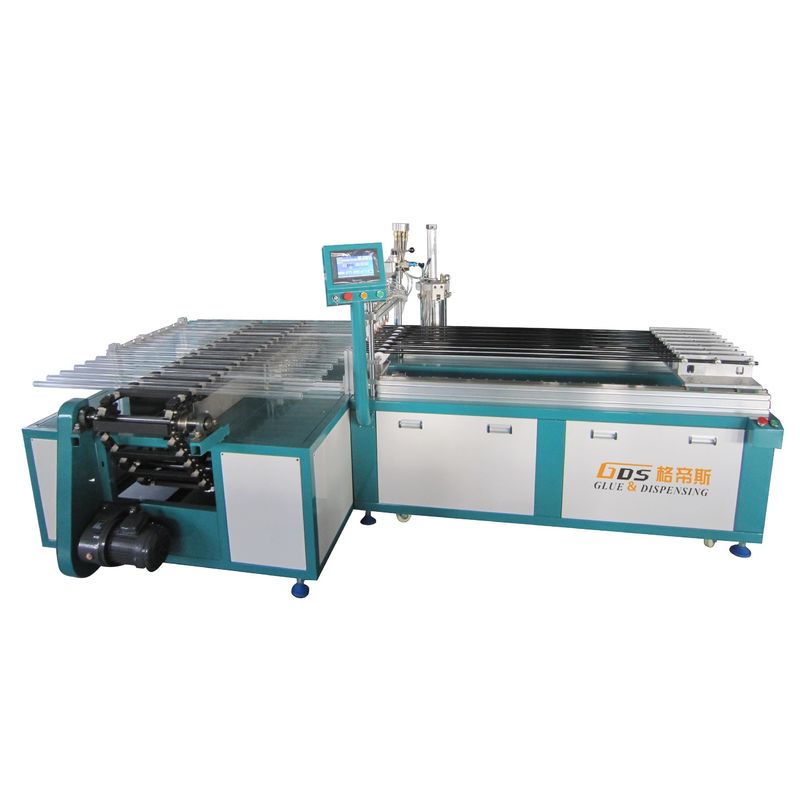

The front end is T8 glass tube glue dispensing machine. It has eight heads that can satisfy the capacity requirement of 1000 pcs/h and only needs two workers to operate.

The functions are mainly as follows: Automatic glass tube loading, automatic PCB glue dispensing and sticking together, semi-finished glass tubes unloading and stacking manually (Semi-finished: glass tubes with PCB already being glued).

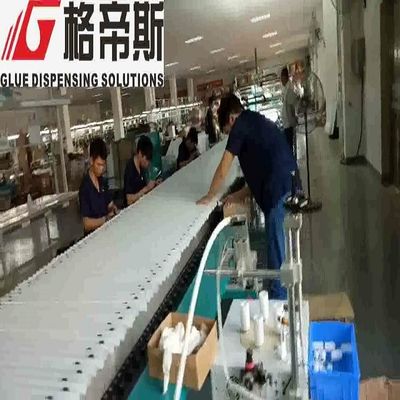

The back end achieves the assembly, aging and testing of semi-finished tubes ( Semi-finished: glass tubes with PCB already being glued) online by means of transmission chain. Main functional modules include

(1)Manual soldering driver and PCB;

(2)Lamp holder[cap] assembly, testing if it is bright or not[lighting test], positioning, etc;

(3)Finished product aging test;

(4)Final testing and defect-screening.

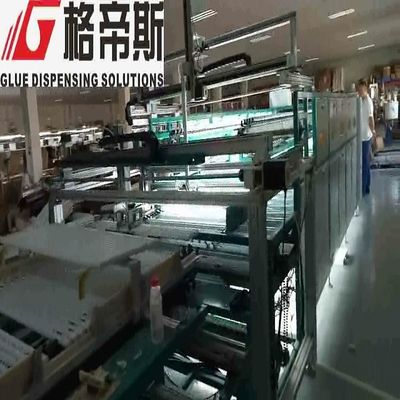

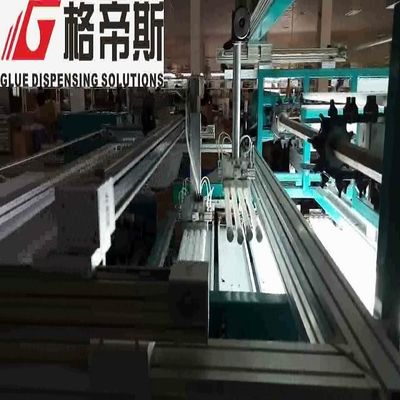

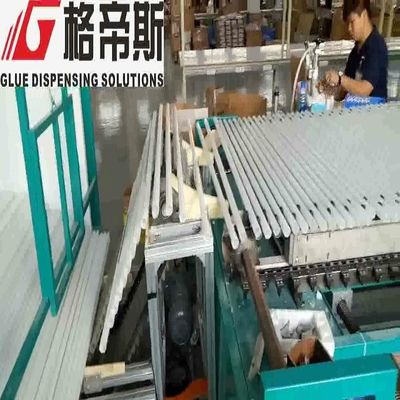

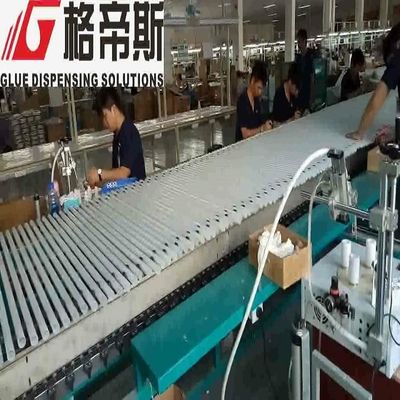

Machine Details

Customized PCB Assembly Line 1000 pcs/h Automatic Assembly Equipment For T8 Glass Tube 1

Customized PCB Assembly Line 1000 pcs/h Automatic Assembly Equipment For T8 Glass Tube 3
