3 Axis Robotic Dispenser 2200*800*1200mm Industrial Glue Dispensers 500mm/sec

3 Axis Robotic Dispenser 22008001200mm Industrial Glue Dispensers 500mm/sec

Brand Name:	GDS
Model Number:	TD-1560
MOQ:	1 PIECE
Price:	CONTACT US
Delivery Time:	10 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Robotic Dispenser

Function:

Dispensing Silicone

Application:

LED Wall-wahser

Warranty:

1 Year

After-sales Service:

On-line Or On-site

EXW Report:

Test Video Available

Packaging Details:

plywood case

Supply Ability:

30PCS/mon

Highlight:

3 Axis Robotic Dispenser

Robotic Dispenser 22008001200mm

Industrial Glue Dispensers 500mm/sec

Product Description

LED wall-washer waterproof bonding done by automatic glue dispensing robot

Machine Description

LED wall-washer is a popular lighting device which is used in architecture outlook shaping. It portraits the building apperance at night. For this kind of light, water-proof is a key factor. The housing and glass cover bonding is realised by silicone application. GDS automatic glue dispensing robot can be perfectly used in this field. The dispensing heads can be programmed to move exactly the shape of LED wall-wahser housing slots. Greatly improve glue application speed and accuracy, to get better quality and save glue and labor cost. For different size of wall-washer, it applies the same. The platform is big enough to keep a few more workpiece to let the glue dispensing head work in cycle.
3 Axis Robotic Dispenser 2200*800*1200mm Industrial Glue Dispensers 500mm/sec 0

Machine Features

improve LED wall-wahser assembly efficiency
get higher IP degree with better water-proof performance
easy to operate and maintain
floor-stand design with wide working range(1500*600MM), suitable for big size work-piece;
for small size projectors, can put more on the platform to let the dispensing head work in cycle to reduce waiting time
equipped hand programming controller, easy to learn and operate;
the instructions can be copied and arrayed;
equipped industrial PLC controller, for different glue with different settings ensure the best performance;
glue flow is stable without leakage and drawing.
can fit for different brand silicone in 300ml package or 2600ml package

Technical Parameters

model	TD-1560
MCU	3 axis movement controller
programming	teaching programming
drive mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	1500600100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	Program Memory Capacity
Dimension(LWH)	22008001200mm
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

Glue applicable
300ml package silicone or 2600ml package silicone
Machine Details

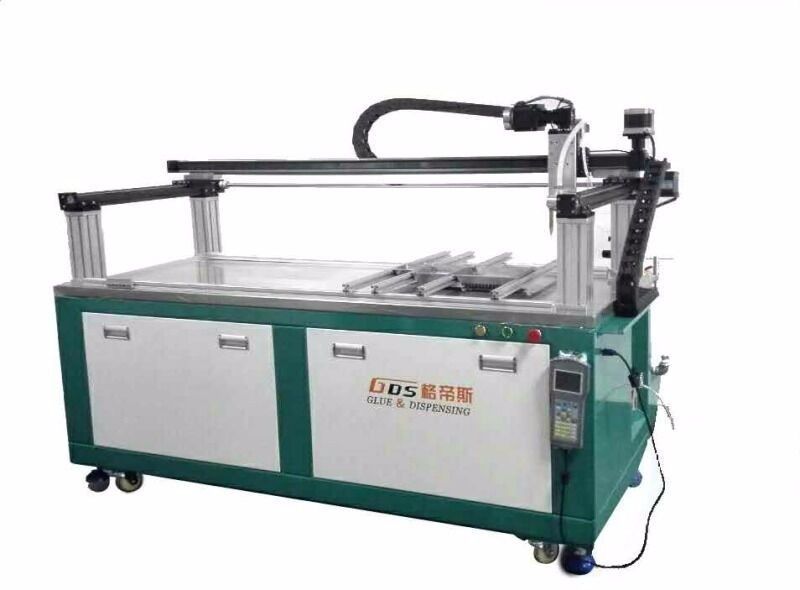

3 Axis Robotic Dispenser 2200*800*1200mm Industrial Glue Dispensers 500mm/sec 1
