Black Epoxy Dispensing Machines Automated Epoxy Dispensing Systems 2280*1380*1500mm

Black Epoxy Dispensing Machines Automated Epoxy Dispensing Systems 228013801500mm

Brand Name:	GDS
Model Number:	MG-1280
MOQ:	1 piece
Price:	CONTACT US
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Epoxy Dispensing Machines

Application:

Electric Inductor Coil

Function:

Automatically Metering And Potting AB Glue

Warranty:

1 Year

EXW Report:

Test Video Available

After-sales Service:

On-line Or On-site

Packaging Details:

plywood case

Supply Ability:

30Pcs/Mon

Highlight:

Black Epoxy Dispensing Machines

Automated Epoxy Dispensing Systems

Automated Epoxy Dispensing Systems 228013801500mm

Product Description

5:1 black epoxy glue potting machine for electric inductor coil production automatic glue injection

Machine Description

The ‌5:1 black epoxy glue potting machine‌ is engineered for high-precision encapsulation of ‌electric inductor coils‌, combining robust insulation performance with automated production adaptability. Key technical specifications include:

‌Precision ratio control‌: Automated dual-component metering system ensures accurate 5:1 epoxy resin-hardener mixing (±1% deviation), maintaining viscosity stability for void-free encapsulation of copper windings and magnetic cores.
‌Industrial-grade durability‌: Reinforced stainless-steel dispensing head withstands carbon-fiber-loaded epoxy compounds, achieving high positional repeatability across cycles running for coil terminal potting‌3.
‌Adaptive programming‌: Multi-axis robotic arm with 1000-path memory accommodates diverse coil geometries (10–200 mm diameter), ensuring 99% coverage accuracy for critical insulation zones between laminated cores and windings.

Machine Features

Metering, proportion, mixing, Dispensing are realized via automatic operation;

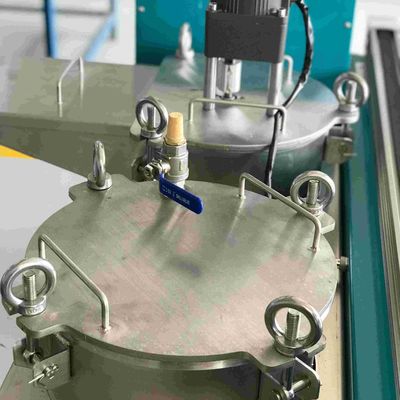

Two 304 stainless steel container to store A glue and B glue separately to make sure glue will not solidify in long term reservation;
3 axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy;

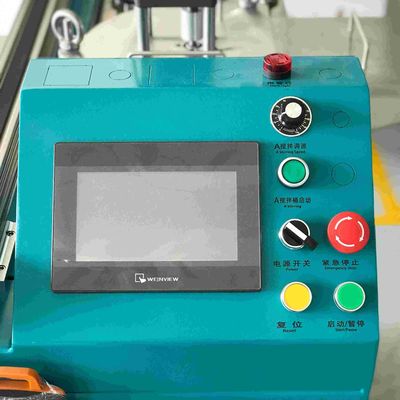

Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.

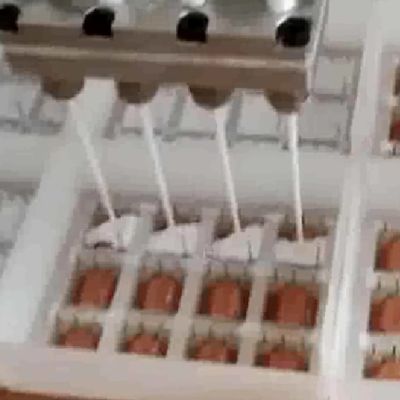

Black Epoxy Dispensing Machines Automated Epoxy Dispensing Systems 2280*1380*1500mm 0

Technical Parameters

Model	MG-1280
Working Range	0～500mm/sec
Repeat Accuracy	±0.02mm
Mixing Proportion	100:100～100:10(1:1~10:1)
Metering Method	Precise Gear Pump or Screw Pump
Mixing Method	Static Mixing
Mixing Accuracy	±1%
Glue Extrusion Accuracy	±1%
Glue Container Capacity	30L 304 Stainless Barrel
Glue Viscosity	Max≤20000CPS
Glue Additive Proportion	MAX≤100(Glue):100(Additive)(1:1)
Glue Additive Size	Max≤400tsp
Control Mode	PLC+Handhold Teaching Programming Case+Touch Screen
Programming	Teaching Programming
Program Capacity	At least 100 unit, 4000 points/unit
Transmission Method	Steeping Motor+Synchronous Belt+Linear Guide-way
Working Pressure	0.5-0.8Mpa
Working Power	AC220V 50HZ/2000W(stirring,vacuuming, heating not included)
Working Temperature	0-40℃
Working Humidity	20-90% no condensation
Dimension	228013801500mm(WxDxH)
Weight	About 350KG
Optional Functions	Glue container stirring, pre-heating, vacuum degassing, self-cleaning

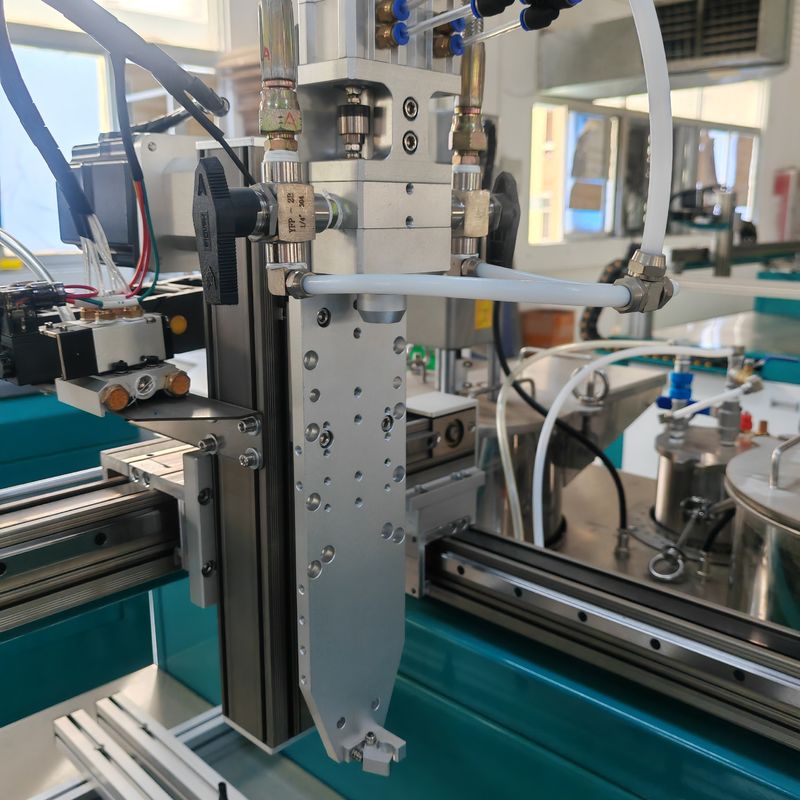

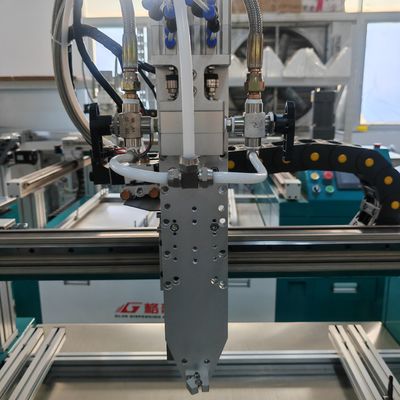

Machine Details

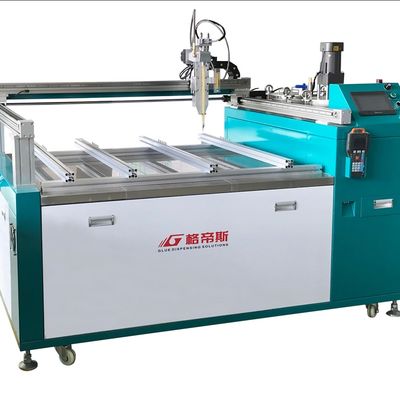

Black Epoxy Dispensing Machines Automated Epoxy Dispensing Systems 2280*1380*1500mm 1
