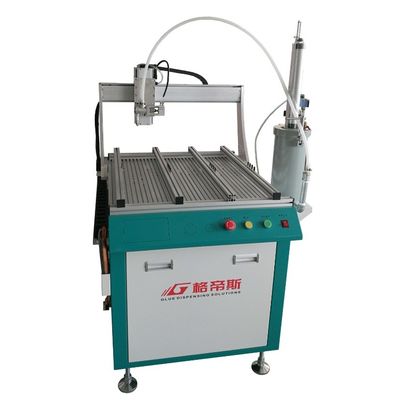

3-Axis Glue Dispensing Robot for Solar Panel Frame Assembly with Precision Adhesive Automation

Machine Description

Elevate your solar panel manufacturing with our 3-axis glue dispensing robot, engineered to deliver flawless adhesive application for solar frame assembly. Designed for high-volume production, this automated system ensures precision, durability, and cost-efficiency in bonding aluminum or composite frames, critical for weatherproofing and structural integrity in photovoltaic (PV) modules.

Key Features & Benefits

• Ultra-Precise Adhesive Control: A motor-driven XYZ-axis system guarantees high-level accuracy, applying uniform glue beads for airtight seals on solar panel frames. Ideal for waterproofing and UV-resistant bonding in harsh outdoor environments.

• Material Versatility: Compatible with versatile silicone, supporting diverse thermal expansion and load-bearing requirements of solar frames.

• Durable Construction: IP55-rated components and stainless-steel frame withstand dust, humidity, and temperature fluctuations common in solar manufacturing facilities.

Applications in Solar Production

• Airtight bonding of aluminum/composite frames to PV module edges.

• Weatherproof sealing for junction boxes and cable entry points.

• Structural reinforcement of mounting clips and corner connectors.

Why Choose Our System?

• 40% Faster Cycle Times: Boost throughput for utility-scale solar projects with automated, error-free dispensing.

• 30% Material Savings: Precision dosing reduces adhesive waste, lowering operational costs.

• Zero Leak Guarantee: Automated path planning eliminates gaps in critical sealing areas, ensuring IP68-rated protection for solar panels.

Request a Free Demo to optimize your solar frame assembly line and achieve seamless, sustainable production!

Machine Features

• equipped industrial PLC controller, for different glue with different settings ensure the best performance;
• replace manual silicone application
• floor-stand design with wide working range(600*600MM), fit for small size work-piece;
• glue flow control is stable without leakage and drawing.
• get better water-proof and bonding performance

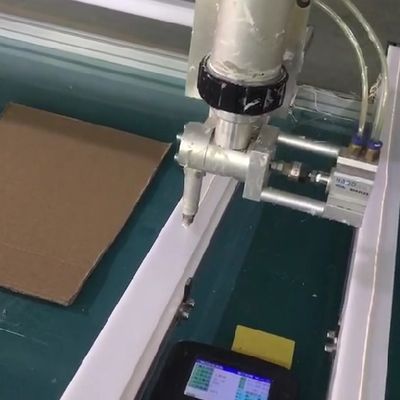

• equipped with small hand programming controller
• make the gluing process easy to accelerate
• can fit for different brand silicone in 300ml package or 2600ml package

Technical Parameters

Glue applicable
300ml package silicone or 2600ml package silicone

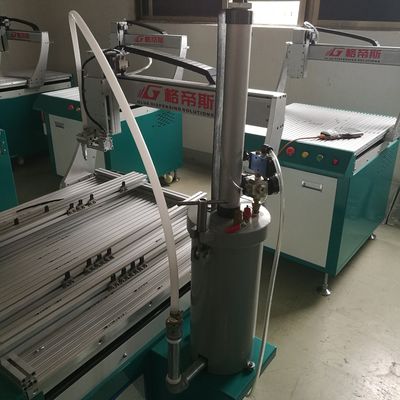

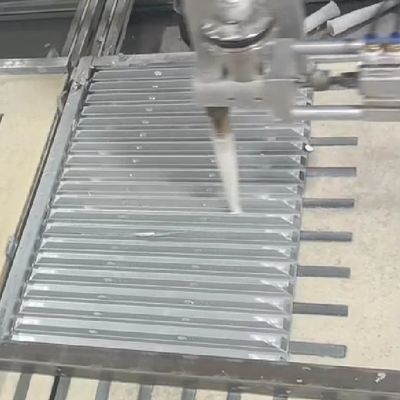

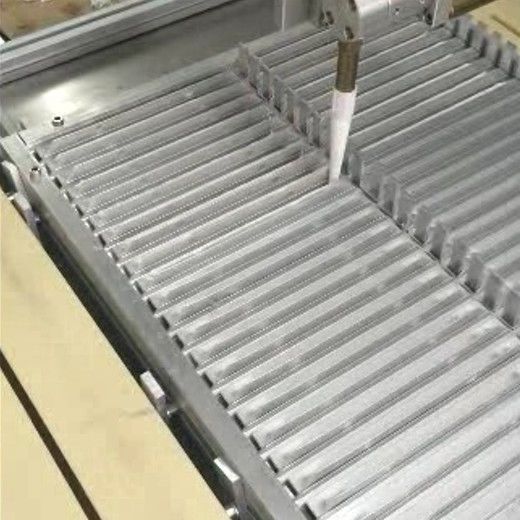

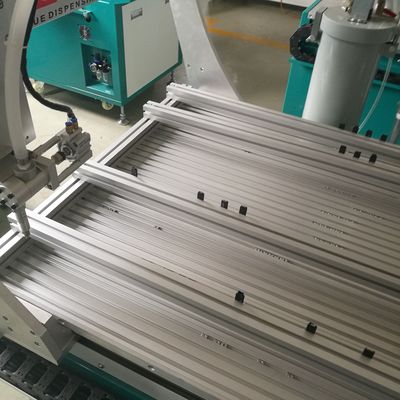

Machine Details
