mirror light frame bonding done by automatic 3 axis glue dispensing robot

Machine Description

The integration of automatic 3-axis glue dispensing robots in mirror light frame bonding represents a significant advancement in precision manufacturing. These robotic systems enable high-accuracy adhesive application for assembling delicate optical components, ensuring consistent bonding strength and alignment tolerance. Equipped with programmable motion control, the 3-axis configuration (X, Y, Z) allows complex path planning to accommodate various frame geometries while maintaining uniform glue dispersion across curved or angular surfaces.

The process typically employs silicone adhesive with optimized refractive indices to minimize light scattering at bonded interfaces.

Modern implementations often combine the dispensing robot with automated workholding fixtures and in-line curing stations, achieving production speeds exceeding 120 frames per hour with ≤0.1% defect rates (case by case)

This technology addresses traditional challenges in manual bonding operations, particularly in eliminating human-induced variability and achieving repeatable results under cleanroom manufacturing conditions. Recent developments incorporate machine learning algorithms to predict adhesive flow patterns and automatically compensate for material shrinkage during curing‌

Machine Features

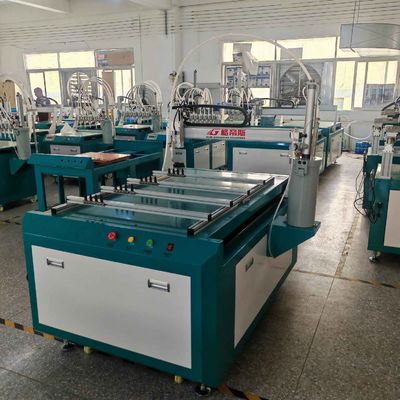

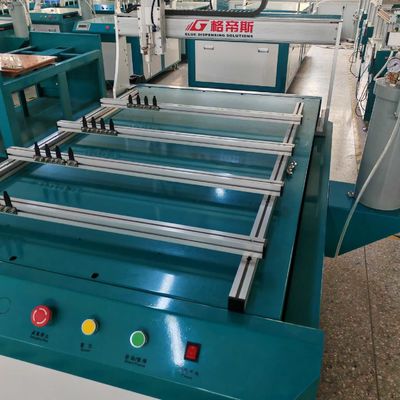

• Floor stand design with wide working range(1200*800MM), suitable for big size work-piece;

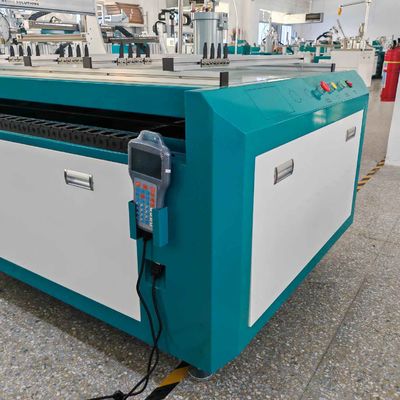

• Equipped hand programming controller, easy to learn and operate;
• The instructions can be copied and arrayed;
• Equipped industrial PLC controller, for different glue with different settings ensure the best performance;
• Glue flow is stable without leakage and drawing.

Technical Parameters

Glue applicable

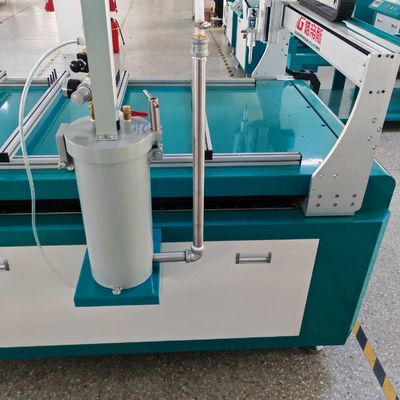

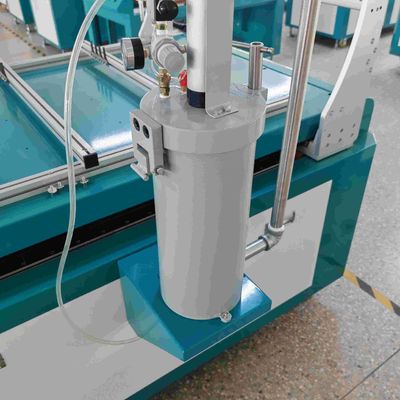

300ml package silicone or 2600ml package silicone

Machine Details
