T8 glass tube assembly machine automatic glue dispenser with 6 dispensing heads

Machine Description

Elevate your glass tube manufacturing efficiency with the ‌T8 Glass Tube Assembly Machine‌, an industry-leading ‌automatic glue dispenser‌ equipped with ‌6 independent dispensing heads‌. Designed for high-volume production of T8 glass tubes used in lighting, display, and industrial applications, this cutting-edge system redefines speed, accuracy, and versatility, making it a must-have for manufacturers aiming to scale output without compromising quality.

‌Why 6 Dispensing Heads Matter‌
The integration of ‌6 synchronized dispensing heads‌ enables simultaneous multi-point glue application, slashing cycle times by up to 60% compared to single-head systems. Whether sealing LED tube ends, bonding structural components, or applying protective coatings, this machine ensures uniform adhesive distribution across all six workstations. This parallel processing capability is ideal for high-throughput environments, such as LED lighting factories or automotive glass suppliers, where precision and speed are non-negotiable.

‌
The ‌T8 Glass Tube Assembly Machine with 6-Dispensing Head Glue Dispenser‌ isn’t just a tool—it’s a competitive edge. Maximize throughput, minimize waste, and meet stringent quality standards with a solution built for the future of glass manufacturing.

Machine Features

•       Specially designed for T8 glass tube, glue valves are working at the same time, the designed capacity is 400 pcs/h;

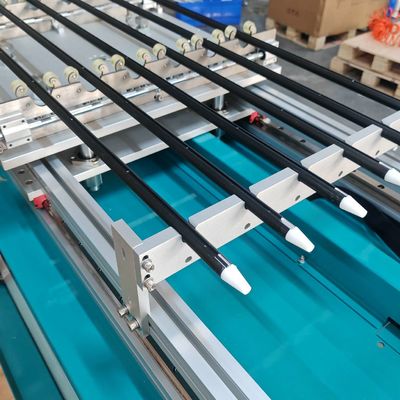

•       Standard model is suitable for tubes in length of 600mm,900mm,1200mm(bigger size needs customization);

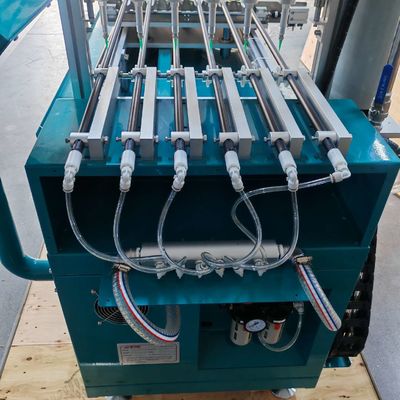

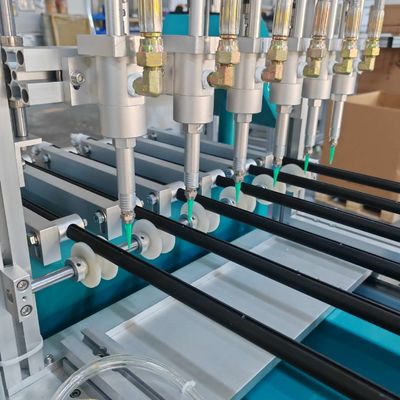

•       Equipped independent dispensing valve for each of six glue tracks. Glue dispensing volume is accurate and fast without glue drawing, drops or leakage;
•       Operation steps include: paving strips/placing tubes, glue dispensing/tubes coating, pressurization, separation, tubes picking and upside down placing;

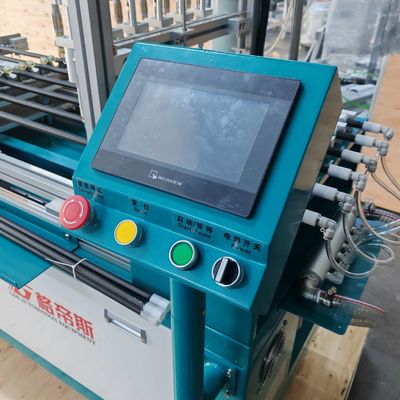

•       Pressurizing time can be set on the touch screen of controller according to glue nature
•       Can be upgraded to fit for flexible PCB

Technical Parameters

Glue applicable

2600ml package silicone
