220V Automatic Glue Dispenser 500mm/sec Robotic Glue Dispensing For LED Flood Light

Name: 220V Automatic Glue Dispenser 500mm/sec Robotic Glue Dispensing For LED Flood Light
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: TD-400
Availability: InStock

Brand Name:	GDS
Model Number:	TD-400
MOQ:	1 PIECE
Price:	CONTACT US
Delivery Time:	10 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Automatic Glue Dispenser

Function:

Dispensing Silicone

Application:

LED Flood Light

Warranty:

1 Year

After-sales Service:

On-line Or On-site

EXW Report:

Test Video Available

Packaging Details:

plywood case

Supply Ability:

30PCS/mon

Highlight:

220V Automatic Glue Dispenser

Automatic Glue Dispenser 500mm/sec

500mm/sec Robotic Glue Dispensing

Product Description

desktop automatic glue dispenser for LED flood light gluing application

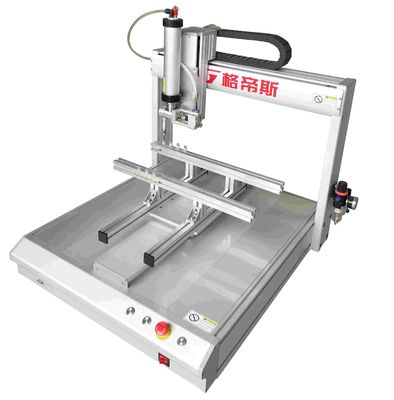

Machine Description

desktop aumatic glue dispenser is a practical glue application tool. It is capable of using 300ml package silicone or 2600ml

package silicone. With 3-axis movement control unit, the dispensing head can be programmed to move in different path,

thus dispensing glue in different path. For led flood light, gasket between housing and glass cover is necessary for

waterproof performance IP grade and components protection. GDS desktop automatic glue dispenser is a quick invest on

production automation which can save much labor cost and at the same time improve LED flood light quality. The working

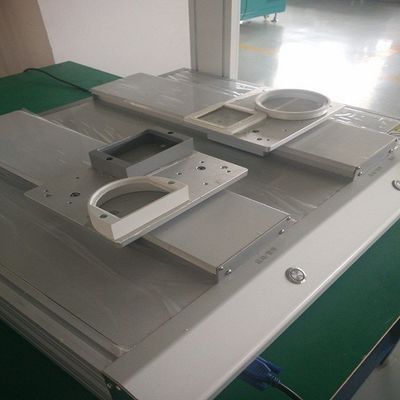

theory is to put the work-piece on the moving platform by the designed fixture, the working platform and gluing nozzle move

as programmed track to coat the work-piece accurately by compressed air.

220V Automatic Glue Dispenser 500mm/sec Robotic Glue Dispensing For LED Flood Light 0

Machine Features

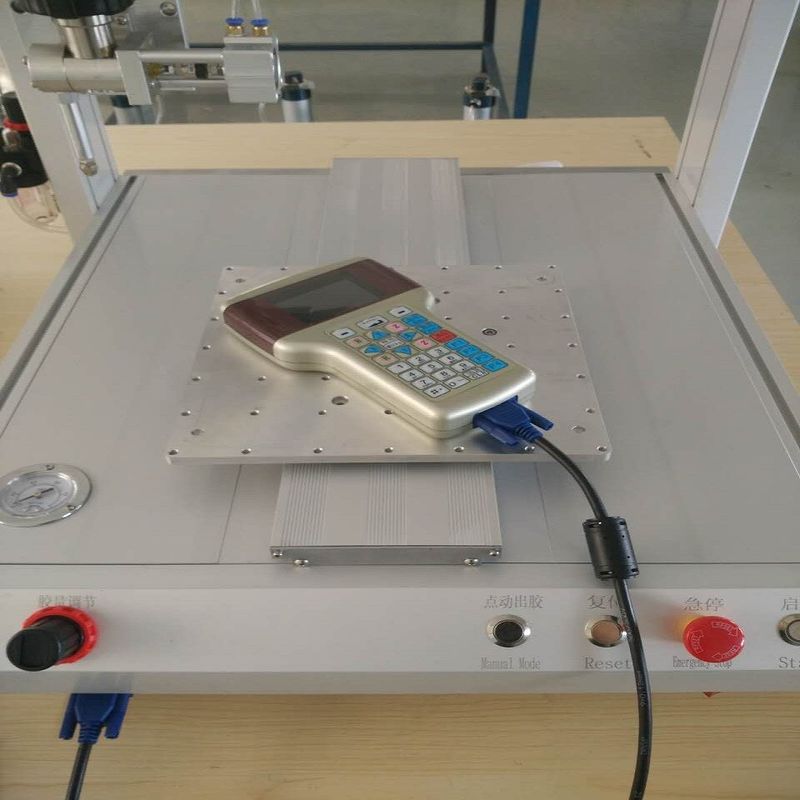

Desktop design with hand programming controller, easy to learn and operate;
Gluing track can be set as points, line, surface, full circle, arc and combinations etc;
The instructions can be copied and arrayed;
Equipped industrial PLC controller, for different glue with different settings ensure the best performance.
Glue flow is stable without leakage and drawing.

Technical Parameters

Model	TD-400
MCU	Three -axis Movement Controller
Programming	Teaching Programming
Drive Mode	Stepping Motor+Synchronous Belt+Linear Guide-way
Working Range(XYZ)	400400100mm(Non-STD size can be customized)
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	About 10000 units
Dimension (LWH)	5008501300mm
Weight	50Kg
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity: 20 ~ 90%

Glue applicable

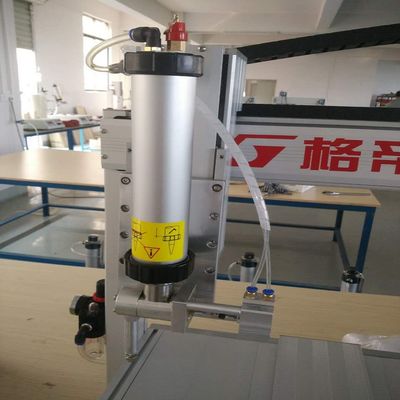

300ml package silicone or 2600ml package silicone

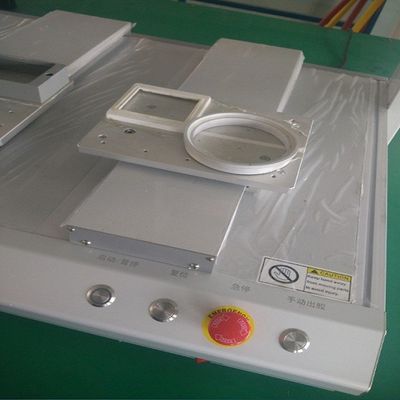

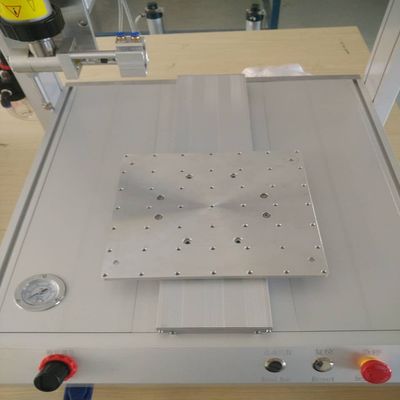

Machine Details
