Six Heads Automated Glue Dispenser 3500W Silicone Dispensing System For Back Lit Panel Light

Name: Six Heads Automated Glue Dispenser 3500W Silicone Dispensing System For Back Lit Panel Light
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: TC-6038
Availability: InStock

Brand Name:	GDS
Model Number:	TC-6038
MOQ:	1 piece
Price:	CONTACT US
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Automated Glue Dispenser

Application:

2x4 Back-lit Panel Light

Function:

Dispensing Silicone And Bonding PCB Strips

Warranty:

1 Year

EXW Report:

Test Video Available

After-sales Service:

On-line Or On-site

Packaging Details:

plywood case

Supply Ability:

30Pcs/Mon

Highlight:

Six Heads Automated Glue Dispenser

Automated Glue Dispenser 3500W

Silicone Dispensing System Six Heads

Product Description

automatic on-line six heads glue dispensing machine for back-lit panel light assembly

Machine Description

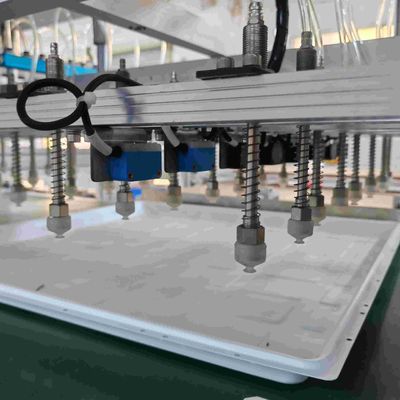

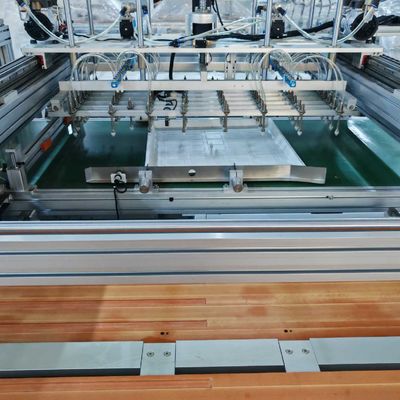

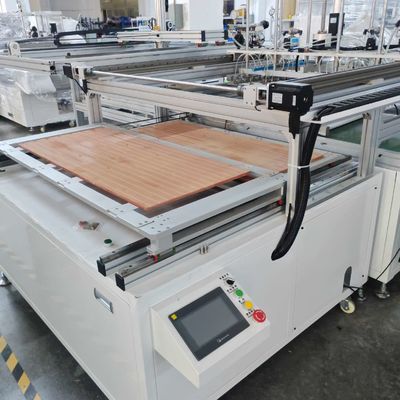

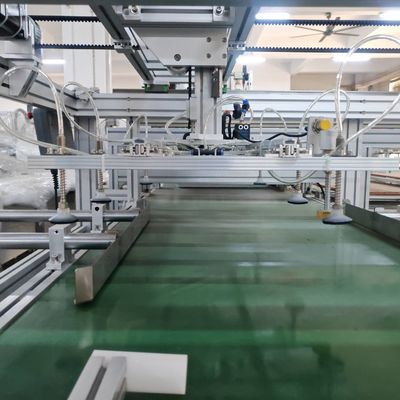

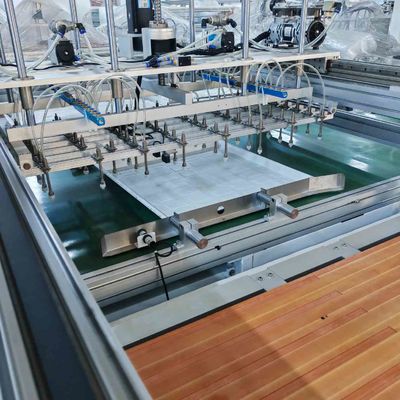

Machine is equipped with multiple glue dispensing heads according to panel light design. The glue dispensing system starts to dispense glue on the board when it reached the position.The pane board will be well glued while it’s moving forward. After gluing, it will be brought to the next PCB fixing station. PCB strips are placed on the fixture manually and will be sucked up and brought to the top position of glued panel board, then pressed down, PCB strip fixing done. Panel board will flow to the next assembly station or be piled up.

Machine Features

Specially designed for back-lit panel light gluing, and PCB strip sticking
Designed capacity is about 300pcs/h(600*600mm panel)
Movement control +PLC, touch screen UI, easy to learn and operate
Speed adjustable conveyor transfer, matching worker operation speed ;
Conveyor can fit for different size of panel light;
Work-piece sensor available, automatically activate the glue valve, no need to press start button frequently;
Glue valve can be controlled independently. Glue flow is fast and accurate;
2600ml big glue pot feeding, no need to change the glue package frequently

Six Heads Automated Glue Dispenser 3500W Silicone Dispensing System For Back Lit Panel Light 0

Technical Parameters

Model	TC-60
MCU	Movement Controller+PLC
Programming	Touch screen
Drive mode	Servo motor,stepping motor, adjustable-speed motor
Max working range	60060080mm
Positioning accuracy	±0.2mm
Dimension	Lmax5500mmWmax2300mmHmax1500mm
Weight	700Kg
Working power	AC220-380V/50～60Hz/ 3500W
Working pressure	0.4 ~ 0.6Mpa(no condensation)
Working temperature and humidity	Temperature:0 ~ 40℃ humidity:20 ~ 90%

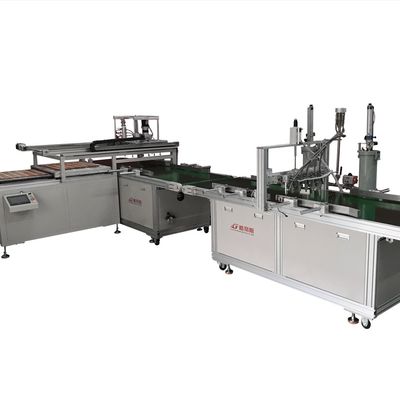

Machine Details

Six Heads Automated Glue Dispenser 3500W Silicone Dispensing System For Back Lit Panel Light 1
