Glue Potting Machine designed to automate AB glue mixing and dispensing for precise and potting of lithium battery modules

Name: Glue Potting Machine designed to automate AB glue mixing and dispensing for precise and potting of lithium battery modules
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: MG-1280
Availability: InStock

Brand Name:	GDS
Model Number:	MG-1280
MOQ:	1 PIECE
Price:	CONTACT US
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Potting Machine

Application:

Led Lights Assembly

Function:

Automatically Potting AB Glue

Working Power:

AC220V 50HZ/2000W(stirring,vacuuming, Heating Not Included)

Working Pressure:

0.5-0.8Mpa

Working Temperature:

0-40℃

Packaging Details:

plywood case

Supply Ability:

30pcs/Mon

Highlight:

AB glue potting machine

lithium battery glue dispenser

automated glue mixing machine

Product Description

Glue Potting Machine designed to automate AB glue mixing and dispensing for precise and potting of lithium battery modules

Machine description

This advanced Glue Potting Machine is engineered to automate the precise mixing and dispensing of AB glue for lithium battery module potting, ensuring superior encapsulation and protection. By integrating high-precision dosing systems and intelligent control algorithms, it achieves uniform glue application, eliminating material waste and enhancing bonding strength. The automated process guarantees consistent coverage, safeguarding battery cells against moisture, dust, and vibration while improving thermal management and mechanical stability.
Designed for efficiency, the machine features PLC control and touchscreen interfaces, allowing seamless parameter adjustments and real-time monitoring. Its adaptability to various battery sizes and shapes makes it ideal for diverse applications, from consumer electronics to industrial energy storage. By minimizing manual intervention, it boosts production speed and reduces operational costs.
The AB glue potting process mitigates risks of leakage and thermal runaway, ensuring safer battery performance in demanding environments. As a key solution for modern lithium battery manufacturing, this machine drives innovation in renewable energy and electric vehicle sectors, delivering improved product quality, enhanced reliability, and faster time-to-market.

Machine Feature

Metering, proportion, mixing, Dispensing are realized via automatic operation;
Two 304 stainless steel container to store A glue and B glue separately to make sure glue will not solidify in long term reservation;
3 axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy;
Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.

Technical Parameters

Model	MG-1280
Working Range	1200800100mm(XYZ)
Moving Speed	0~500mm/sec
Repeat Accuracy	±0.02mm
Mixing Proportion	100:100~100:10(1:1~10:1)
Metering Method	Precise Gear Pump or Rotary Plunger Pump
Mixing Method	Static Mixing or Dynamic Mixing(based on glue nature)
Mixing Accuracy	±1%
Glue Extrusion Accuracy	±1%
Glue Container Capacity	30L 304 Stainless Barrel
Glue Viscosity	Max≤20000CPS
Glue Additive Proportion	MAX≤100(Glue):100(Additive)(1:1)
Glue Additive Size	Max≤400tsp
Control Mode	PLC+Handhold Teaching Programming Case+Touch Screen
Programming	Teaching Programming
Program Capacity	At least 100 unit, 4000 points/unit
Transmission Method	Steeping Motor+Synchronous Belt+Linear Guide-way
Working Pressure	0.5-0.8Mpa
Working Power	AC220V 50HZ/2000W(stirring,vacuuming, heating not included)
Working Temperature	0-40℃
Working Humidity	20-90% no condensation
Dimension	1680x1200x1600 mm(WxDxH)
Weight	About 350KG
Optional Functions	Glue container stirring, pre-heating, vacuum de-foaming, automatic cleaning

Suitable Glue: two component glue, such as organic silicone, epoxy, PU, acrylate etc.

Applications:Small size products with small volume of glue, such as LED display, wall washer light, line light, Ads module, nixie tube, mutual inductor, transformer, power module, photo-voltaic module, automobile head light, daytime running light, negative-ion generator, crystal photo frame etc.

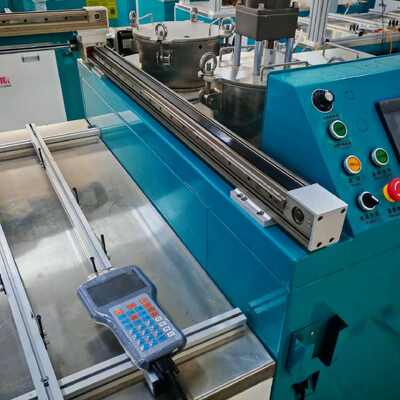

Glue Potting Machine designed to automate AB glue mixing and dispensing for precise and potting of lithium battery modules 0

Glue Potting Machine designed to automate AB glue mixing and dispensing for precise and potting of lithium battery modules 2
