Automatic Glue Dispensing Machine with three axis programmable movement and designed fixture for accurate glue coating on work pieces

Name: Automatic Glue Dispensing Machine with three axis programmable movement and designed fixture for accurate glue coating on work pieces
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: TD-1560
Availability: InStock

Brand Name:	GDS
Model Number:	TD-1560
MOQ:	1 PIECE
Price:	CONTACT US
Delivery Time:	10 WORKING DAYS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Glue Dispensing Machine

Application:

LED Outdoor Lights

Function:

Silicone Dispensing

EXW Report:

Test Video Available

After-sales Service:

On-line Or On-site

Warranty:

1 Year

Packaging Details:

PLYWOOD CASE

Supply Ability:

30PCS/MONTH

Product Description

Three-axis Glue Dispensing Machine for outdoor lights gluing automatic glue dispenser

Principle Description

Put the work-piece on the moving platform by the designed fixture, the working platform and gluing nozzle move as programmed track to coat the work-piece accurately by compressed air.

Machine Features

Floor stand design with wide working range(1500*600MM), suitable for big size work-piece;
Equipped hand programming controller, easy to learn and operate;
The instructions can be copied and arrayed;
Equipped industrial PLC controller, for different glue with different settings ensure the best performance;
Glue flow is stable without leakage and drawing.

Technical Parameters

Model	TD-1560
MCU	Three-axis Movement Controller
Programming	Teaching Programming
Drive Mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	1500600100mm(Non-STD size can be customized)
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	About 10000 units
Dimension(LWH)	22008001200mm
Weight	150Kg
Working Power	AC220V/50~60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

Suitable Glue: 300ml or 2600ml single-component package for silicone, thermal conductive silicone grease, UV glue, AB glue etc.

Applications:Big size products, such as LED wash wall light, flood light, ceiling light, outdoor wall light, car headlight, smoke exhaust ventilator etc.

Machine Details

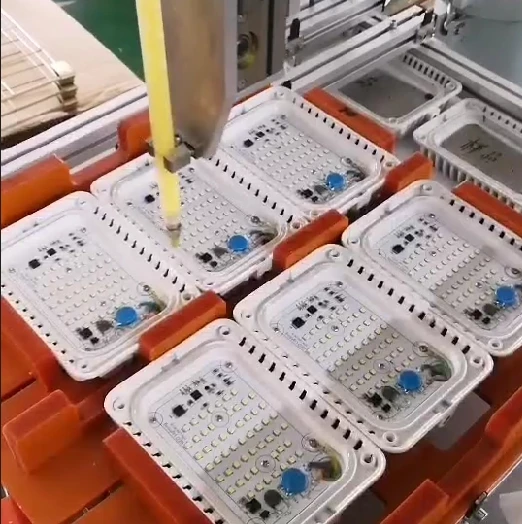

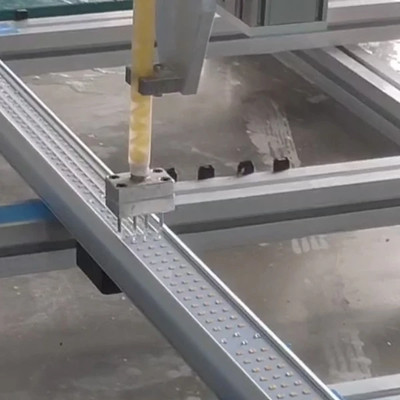

Automatic Glue Dispensing Machine with three axis programmable movement and designed fixture for accurate glue coating on work pieces 1

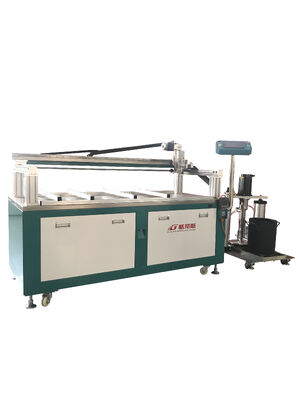

Automatic Glue Dispensing Machine with three axis programmable movement and designed fixture for accurate glue coating on work pieces 3
