Eight-Station Automatic Glue Dispenser with Punching and Gluing Function and Adjustable Gluing Track

Name: Eight-Station Automatic Glue Dispenser with Punching and Gluing Function and Adjustable Gluing Track
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: JCD-80
Availability: InStock

Brand Name:	GDS
Model Number:	JCD-80
MOQ:	1PIECE
Price:	CONTACT US
Delivery Time:	10 WORKING DAYS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Auto Glue Dispenser

Application:

LED Bulb

Function:

Punching And Gluing

EXW Report:

Test Video Available

After-sales Service:

On-line

Warranty:

1 Year

Packaging Details:

PLYWOOD CASE

Supply Ability:

30PCS/MONTH

Highlight:

Punching and Gluing Automatic Glue Dispenser

Adjustable Gluing Track Auto Glue Dispenser

Eight-Station Glue Dispensing Machine

Product Description

Automatic Glue Dispenser with Punching and Gluing Cycles

Combining punching and gluing processes with adjustable gluing track for versatile application requirements

High-Capacity T Bulb Processing System

T bulb punching machine and gluing machine with high capacity eight station glue dispenser for high power bulb applications

Machine Features

Floor stand design with casters for stability and easy mobility
Integrated punching and gluing processes operating in cycles with designed capacity of 1000 pieces per hour
Equipped with workpiece detector to determine working or skipping operations
Adjustable gluing track configurations: full circle, single point, or segmented arc
Flexible working modes: two-station, four-station, or eight-station operation
User-friendly operation with touch screen and buttons for easy learning
Customizable settings for different glue types to ensure optimal performance

Technical Parameters

Model	JCD-80
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive Mode	Precise Stepping Motor
Max Dispensing Diameter	280mm (two-station), 200mm (four-station), 110mm (eight-station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (L×W×H)	680mm × 700mm × 1520mm
Weight	190Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0~40℃, Humidity: 20~90%

Material Specifications

Suitable Glue: 300ml/2600ml single-component package for silicone

Applications: LED bulb manufacturing

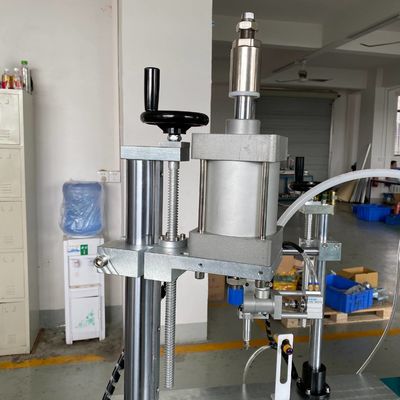

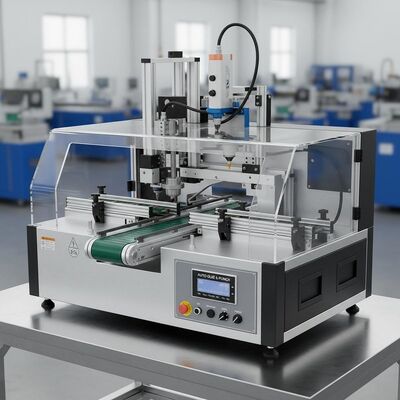

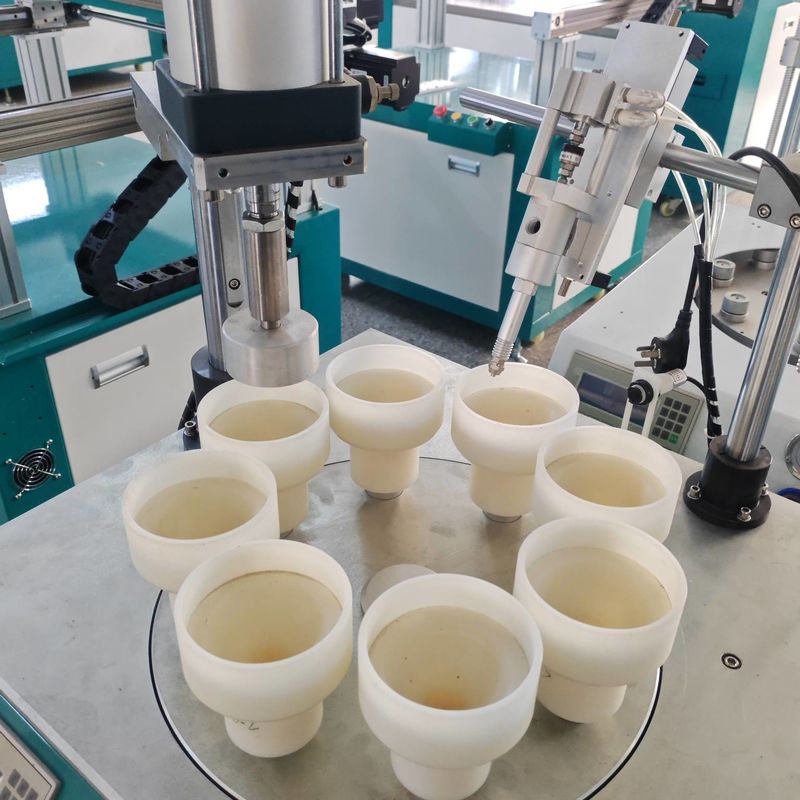

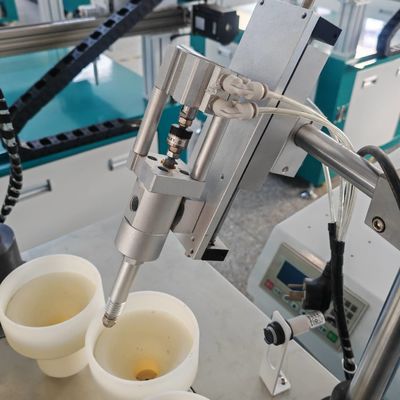

Machine Details
