LED Bulb Assembly Line with 1000pcs/h Capacity PLC Control and Touch Screen Operation for Semi-automatic Custom Assembly

Name: LED Bulb Assembly Line with 1000pcs/h Capacity PLC Control and Touch Screen Operation for Semi-automatic Custom Assembly
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: JCD-90
Availability: InStock

Brand Name:	GDS
Model Number:	JCD-90
MOQ:	1PIECE
Price:	CONTACT US
Delivery Time:	15WORKING DAYS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Custom Assembly Machine

Application:

LED Bulb

Function:

Assembly LED Bulb

After-sales Service:

On-line Or On-site

EXW Report:

Test Video Available

Warranty:

1 Year

Packaging Details:

PLYWOOD CASE

Supply Ability:

15PCS/MONTH

Highlight:

1000pcs/h LED Bulb Assembly Line

PLC Control Custom Assembly Machine

Touch Screen Operation Semi-automatic Assembly Line

Product Description

LED Bulb Semi-automatic Assembly Line Punching Gluing And Housing Assembly Line

This semi-automatic assembly line integrates punching, gluing, and housing assembly processes for LED bulb manufacturing, operating in a continuous cycle with a designed capacity of 1000 pieces per hour.

Machine Features

Floor stand design with casters for stability and easy mobility
Integrated punching, gluing, and housing assembly processes with cyclic operation
Designed production capacity: 1000 pieces per hour
Equipped with workpiece detector for selective operation
Configurable gluing tracks: full circle, single point, or segmented arc patterns
Flexible working modes: two-station, four-station, or eight-station configurations
User-friendly operation with touch screen and button controls
Customizable settings for different glue types to ensure optimal performance

Technical Parameters

Parameter	Specification
Model	JCD-90
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive Mode	Precise Stepping Motor
Max Dispensing Diameter	280mm (two-station), 200mm (four-station), 110mm (eight-station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (LWH)	680mm * 700mm * 1520mm
Weight	190Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0~40℃, Humidity: 20~90%

Suitable Glue: 300ml/2600ml single-component package for silicone
Applications: LED bulb assembly and manufacturing

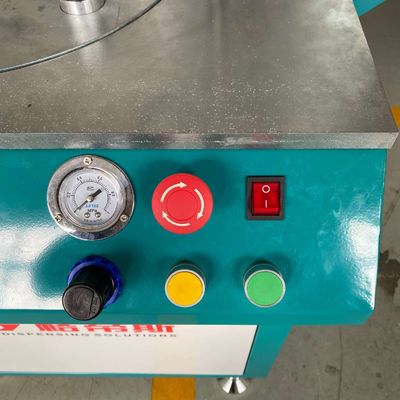

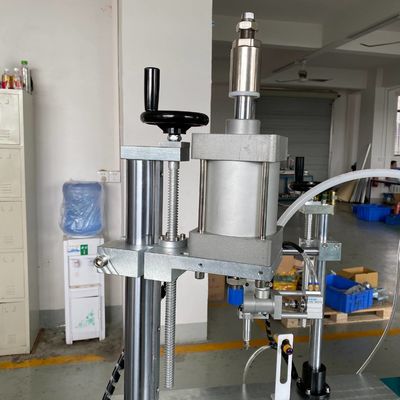

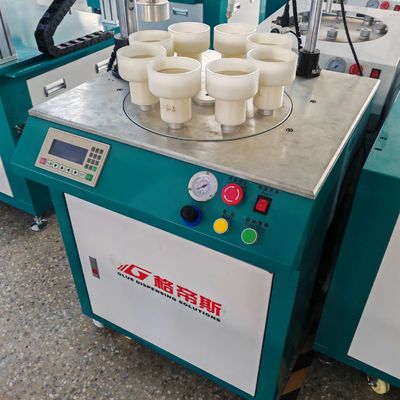

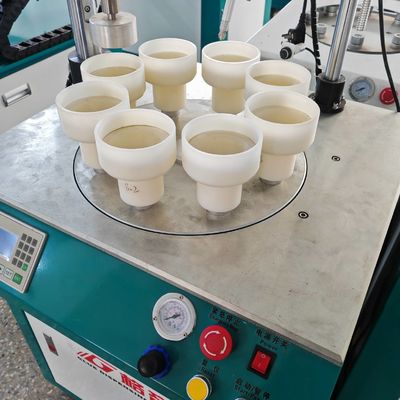

Machine Details
