Glue Dispensing Machine
Created with Pixso. 600x600mm Panel Automated Adhesive Dispenser with PCB Bonding Station and 300pcs/h Capacity
name
  • name
  • name
  • name
  • name
  • name

600x600mm Panel Automated Adhesive Dispenser with PCB Bonding Station and 300pcs/h Capacity

Brand Name: GDS
Model Number: TC-9025
MOQ: 1 piece
Price: CONTACT US
Delivery Time: 10 working days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Name:
Automated Adhesive Dispenser
Application:
2x2 Back-lit Panel Light
Function:
Dispensing Silicone And Bonding PCB Strips
Warranty:
1 Year
EXW Report:
Test Video Available
After-sales Service:
On-line Or On-site
Packaging Details:
plywood case
Supply Ability:
30Pcs/Mon
Highlight:

600x600mm Panel Glue Dispensing Machine

,

Automated Loading Unit PCB Bonding Station

,

300pcs/h Capacity Automated Adhesive Dispenser

Product Description
600x600 Panel Assembly Solution

Advanced 600x600 panel customized assembly machine with glue dispensing station, PCB bonding station and automated loading unit.

Machine Overview

This advanced 600x600 panel customized assembly machine is designed for high-precision, automated manufacturing processes, integrating three critical stations to streamline production. The glue dispensing station ensures accurate and consistent adhesive application for panel PCB bonding, tailored for materials requiring specific viscosity and curing parameters. The PCB bonding station guarantees precise alignment and secure attachment of printed circuit boards (PCBs) to panels, leveraging programmable pressure and temperature controls for optimal electrical and mechanical performance. Complemented by an automated loading unit, the system enables seamless panel handling, reducing manual intervention and maximizing throughput.

Key Features
  • Specialized for back-lit panel light gluing and PCB strip sticking
  • Automated panel loading and unloading
  • Designed capacity: approximately 300pcs/h (600×600mm panel)
  • Movement control + PLC with touch screen UI for easy operation
  • Speed adjustable conveyor transfer matching worker operation speed
  • Conveyor adaptable to different panel light sizes
  • Work-piece sensor automatically activates glue valve
  • Independent glue valve control with fast, accurate glue flow
  • 2600ml large glue pot feeding reduces frequent glue changes

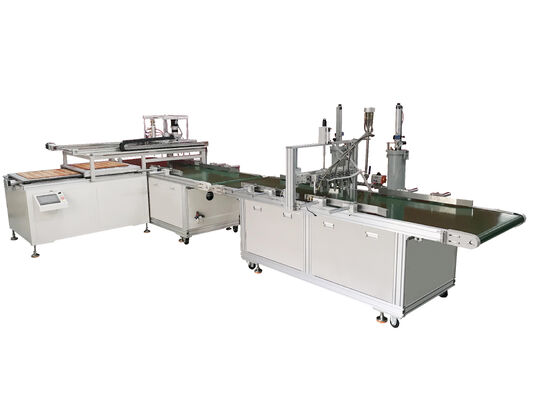

600x600mm Panel Automated Adhesive Dispenser with PCB Bonding Station and 300pcs/h Capacity 0
Technical Specifications
Parameter Specification
Model TC-90
MCU Movement Controller + PLC
Programming Touch screen
Drive mode Servo motor, stepping motor, adjustable-speed motor
Max working range 600×600×80mm
Positioning accuracy ±0.2mm
Dimension Lmax5500mm × Wmax2300mm × Hmax1500mm
Weight 700Kg
Working power AC220-380V/50～60Hz/3500W
Working pressure 0.4 ~ 0.6Mpa (no condensation)
Working temperature and humidity Temperature: 0 ~ 40℃, Humidity: 20 ~ 90%

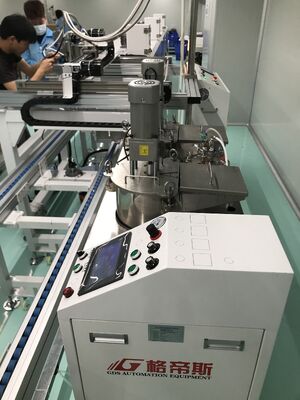

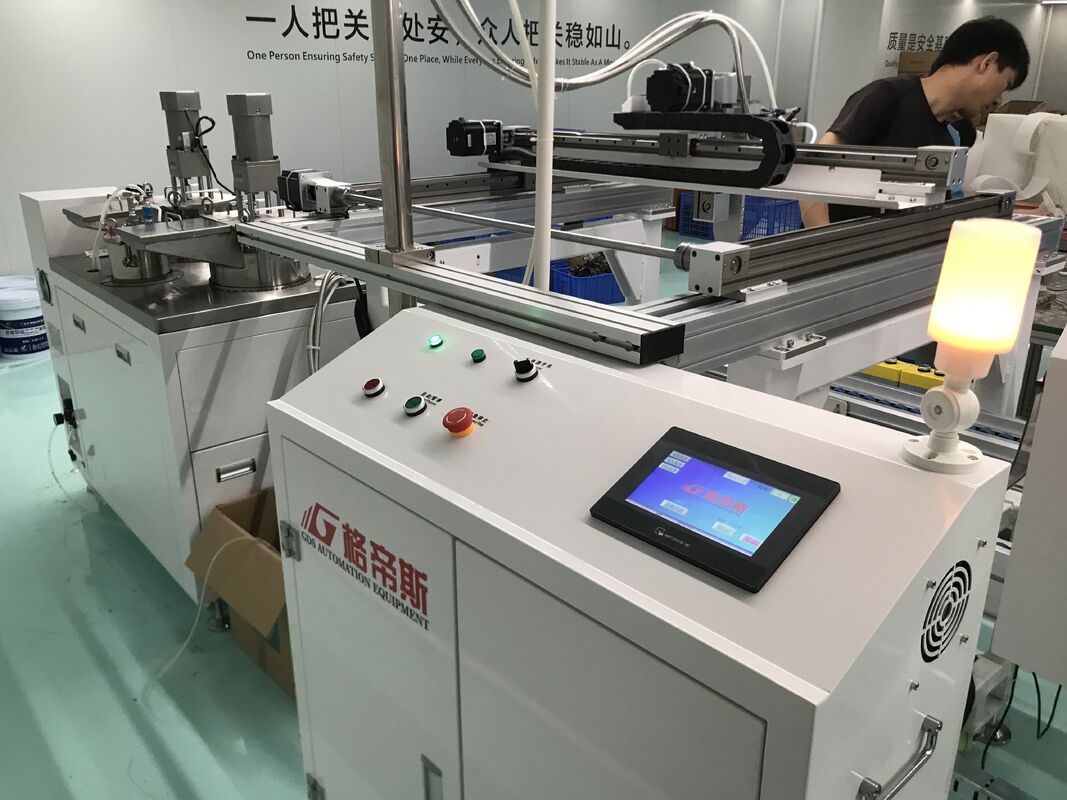

Machine Details
600x600mm Panel Automated Adhesive Dispenser with PCB Bonding Station and 300pcs/h Capacity 1 600x600mm Panel Automated Adhesive Dispenser with PCB Bonding Station and 300pcs/h Capacity 2
