T8 Glass Tube Glue Dispensing Machine with 400pcs/h Capacity and PLC Control for LED Lights Assembly

Brand Name: GDS
Model Number: TD-1206
MOQ: 1 PIECE
Price: CONTACT US
Delivery Time: 15 WORKING DAYS
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Name:
Glue Dispensing Machine
Application:
Led Lights Assembly
Function:
Glue Dispensing Machine
After-sales Service Provided:
On-line Or On-site
EXW Report:
Test Video Available
Warranty:
1 Year
Packaging Details:
PLYWOOD CASE
Supply Ability:
10PCS/MONTH
Highlight:

400pcs/h Capacity Glue Dispensing Machine

,

T8 Glass Tube Automatic Glue Dispenser

,

PLC Control Adhesive Dispensing System

Product Description
T8 Glass Tube Glue Dispensing Machine with Automatic Adhesive Dispensing and High Production Capacity of 400pcs per Hour
Product Overview
T8 Glass Tube Glue Dispensing Machine with 400pcs/h Capacity and PLC Control for LED Lights Assembly 0

GDS basic glue dispensing machine for T8 glass tube working theory is as following. Put six PCB strips downside on the fixture sticks. Six PCB strips on the fixture sticks are being glued while being inserted to the glass tube. The tubes press down for few seconds and stick with PCBs. The whole process is finished when the sticks are pulled out and tubes are transferred to the next work station. That's how T8 glass tube glue dispensing machine works. GDS automatic glue dispenser can perfectly replace manual operation to get glass tube and PCB strip sticked together tightly.

Machine Features
  • Specially designed for T8/T5 glass tube, glue valves are working at the same time, the designed capacity is 400 pcs/h
  • Standard model is suitable for tubes in length of 600mm,900mm,1200mm (bigger size needs customization)
  • Equipped independent dispensing valve for each of six glue tracks. Glue dispensing volume is accurate and fast without glue drawing, drops or leakage
  • Operation steps include: paving strips/placing tubes, glue dispensing/tubes coating, pressurization, separation, tubes picking and upside down placing
  • Pressurizing time can be set on the touch screen of controller according to glue nature
Technical Specifications
Model TD-1206
Working Range Max≤1200mm
Moving Speed Max≤300mm/sec
Repeat Accuracy ±0.05mm
Power Source Pressed Air+Assisting Cylinder
Glue Dispensing Volume Depends on Glue Viscosity
Glue Container capacity 2600ml Silicone Pressure Barrel
Glue Viscosity Max≤20000CPS
Control Mode PLC+Touch Screen
Programming Teaching Programming
Program Capacity At least 100 units,4000 points/unit
Transmission Mode Stepping Motor+Synchronous Belt+Linear Guide-way
Working Pressure 0.5-0.8Mpa
Working Power AC220V 50HZ/2000W
Working Temperature 0-40℃
Working Humidity 20-90% no condensation
Dimension 3200*750*1550mm(WxDxH)
Weight About 300KG
Machine Details

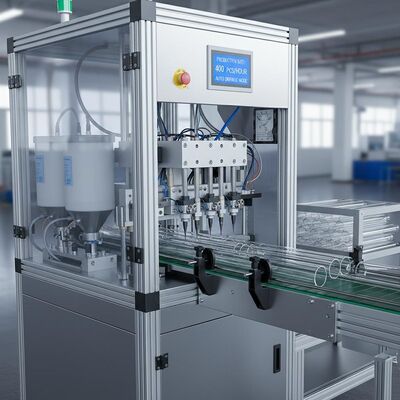

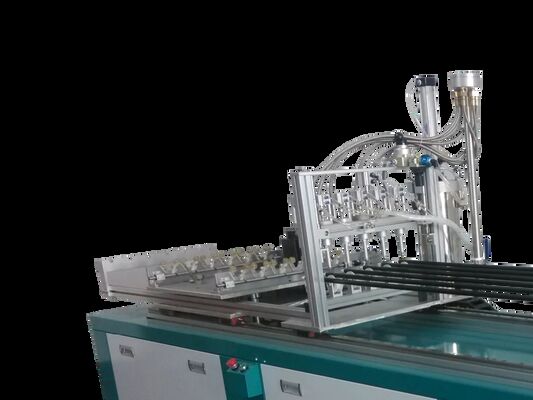

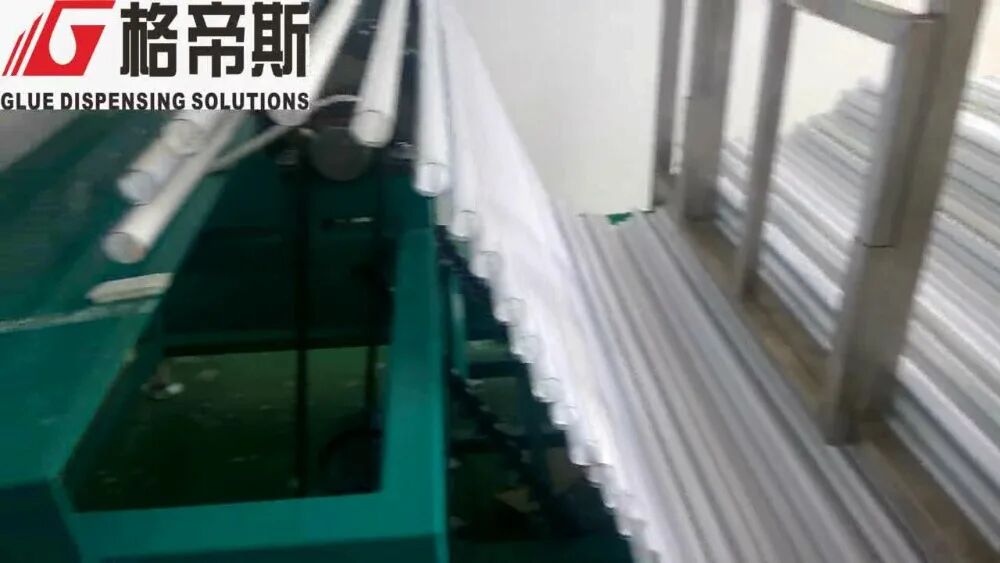

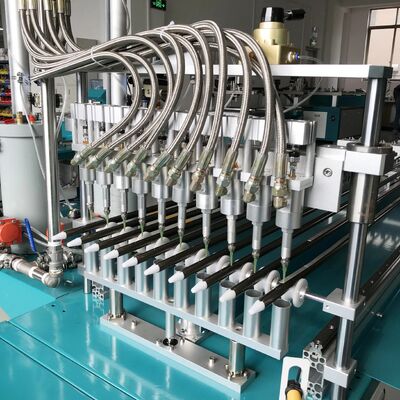

T8 Glass Tube Glue Dispensing Machine with 400pcs/h Capacity and PLC Control for LED Lights Assembly 1 T8 Glass Tube Glue Dispensing Machine with 400pcs/h Capacity and PLC Control for LED Lights Assembly 2 T8 Glass Tube Glue Dispensing Machine with 400pcs/h Capacity and PLC Control for LED Lights Assembly 3
