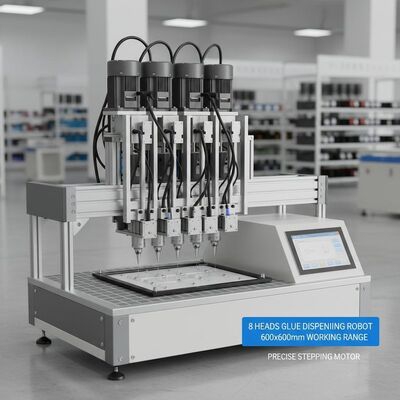

8 Heads Glue Dispensing Robot with 600*600mm Working Range and Precise Stepping Motor for Backlit Panel Light Assembly

Name: 8 Heads Glue Dispensing Robot with 600*600mm Working Range and Precise Stepping Motor for Backlit Panel Light Assembly
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: HTD-600-8
Availability: InStock

Brand Name:	GDS
Model Number:	HTD-600-8
MOQ:	1 PIECE
Price:	Contact US
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Glue Dispensing Robot

Application:

Back-lit Panel Light

Function:

Dispensing Glue

EXW Report:

Test Video Available

After-sales Service Provided:

On-line Or On-site

Warranty:

1 Year

Packaging Details:

plywood case

Supply Ability:

30PCS/Month

Highlight:

8 Heads Glue Dispensing Robot

600*600mm Working Range Automated Glue Dispenser

Precise Stepping Motor Silicone Dispensing System

Product Description

Glue Dispensing Robot with 8 Heads for Precise Silicone Glue Application

8 Heads Glue Dispensing Robot for 2X2 Back-lit Panel Light Production Glue Application

Machine Description

2X2 back-lit panel light assembly process includes bonding PCB strips to the housing with silicone glue. Some panel light manufacturers use 6 PCB strips, while others use 8 PCB strips. Regardless of the number, silicone glue application is essential. The GDS 8-heads glue dispensing robot is designed to meet panel light manufacturers' demand for applying 8 glue lines to the housing simultaneously. It can perfectly dispense 8 straight silicone lines corresponding to 8 PCB strips in a quick, even motion. All 8 silicone dispensing heads can be controlled independently, allowing operators to use any combination based on specific production requirements.

Machine Features

Floor stand design with castors for easy mobility to match assembly line requirements
Fixed working platform for convenient pick-and-place workpiece handling
Wide working range (600×600mm) capable of fitting single panel pieces
Easy-to-learn and operate program settings
Stable glue flow without leakage or drawing issues

Technical Parameters

Model	HTD-600-8
MCU	Text Controller
Programming	Teaching Programming
Drive Mode	Precise Stepping Motor + Synchronous Belt + Linear Guide-way
Working Range (X×Y×Z)	600×600×100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	Approximately 10,000 units
Dimension (L×W×H)	700×650×1200mm
Weight	135Kg
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity: 20 ~ 90%

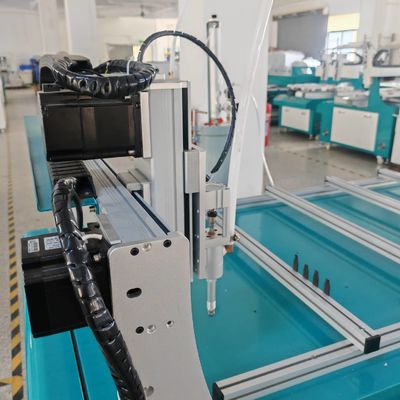

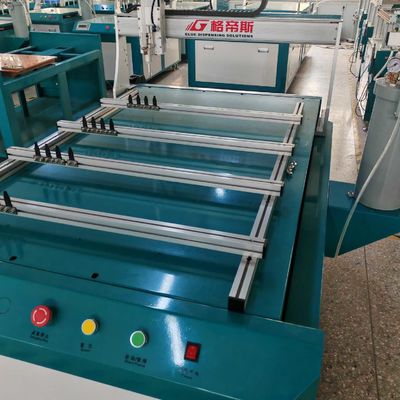

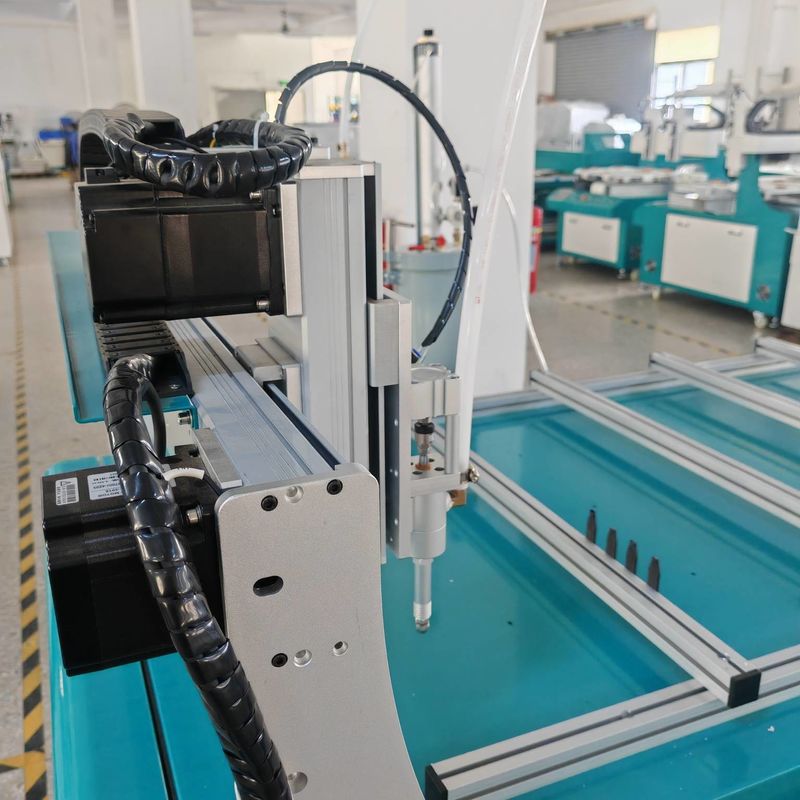

Machine Details
