5:1 Mixing Ratio Epoxy Glue Potting Machine with 220V Power and Precision Ratio Control for Water Pump Assembly

Name: 5:1 Mixing Ratio Epoxy Glue Potting Machine with 220V Power and Precision Ratio Control for Water Pump Assembly
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: MG-1280
Availability: InStock

Brand Name:	GDS
Model Number:	MG-1280
MOQ:	1 piece
Price:	CONTACT US
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Glue Potting Machine

Application:

Water Pump

Function:

Automatically Metering And Potting AB Glue

Warranty:

1 Year

EXW Report:

Test Video Available

After-sales Service:

On-line Or On-site

Packaging Details:

plywood case

Supply Ability:

30Pcs/Mon

Highlight:

5:1 Mixing Ratio Epoxy Glue Potting Machine

220V Power Glue Potting Machine

Precision Ratio Control Epoxy Mixing And Dispensing Machine

Product Description

Epoxy Glue Potting Machine 220V Epoxy Mixing And Dispensing Machine For Water Pump

Product Overview

5:1 black epoxy glue potting machine for water pump assembly glue automatic injection

The 5:1 black epoxy glue potting machine is engineered for high-precision encapsulation in water pump assembly manufacturing, combining robust sealing performance with production-line adaptability. Optimized for waterproofing in submerged pump applications.

Technical Specifications

Precision ratio control: Automated dual-component metering system ensures accurate 5:1 epoxy resin-hardener mixing (±1% deviation) for consistent viscosity and bubble-free encapsulation
Industrial-grade durability: Reinforced stainless-steel dispensing head withstands abrasive filler-loaded epoxy compounds, maintaining high repeatability across cycle running for pump housing and impeller potting
Adaptive programming: Multi-axis robotic arm with path memory function accommodates diverse pump geometries, achieving high percentage coverage accuracy for critical sealing areas like shaft couplings

Machine Features

Metering, proportion, mixing, dispensing are realized via automatic operation
Two 304 stainless steel containers to store A glue and B glue separately to prevent solidification during long-term reservation
3-axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy
Touch screen operation plus handheld teaching programming case, easy to learn and operate
Customizable fixture and glue delivery head according to product features and production capacity requirements

Technical Parameters

Model	MG-1280
Working Range	0～500mm/sec
Repeat Accuracy	±0.02mm
Mixing Proportion	100:100～100:10(1:1~10:1)
Metering Method	Precise Gear Pump or Screw Pump
Mixing Method	Static Mixing
Mixing Accuracy	±1%
Glue Extrusion Accuracy	±1%
Glue Container Capacity	30L 304 Stainless Barrel
Glue Viscosity	Max≤20000CPS
Glue Additive Proportion	MAX≤100(Glue):100(Additive)(1:1)
Glue Additive Size	Max≤400tsp
Control Mode	PLC+Handhold Teaching Programming Case+Touch Screen
Programming	Teaching Programming
Program Capacity	At least 100 unit, 4000 points/unit
Transmission Method	Steeping Motor+Synchronous Belt+Linear Guide-way
Working Pressure	0.5-0.8Mpa
Working Power	AC220V 50HZ/2000W(stirring,vacuuming, heating not included)
Working Temperature	0-40℃
Working Humidity	20-90% no condensation
Dimension	228013801500mm(WxDxH)
Weight	About 350KG
Optional Functions	Glue container stirring, pre-heating, vacuum degassing, self-cleaning

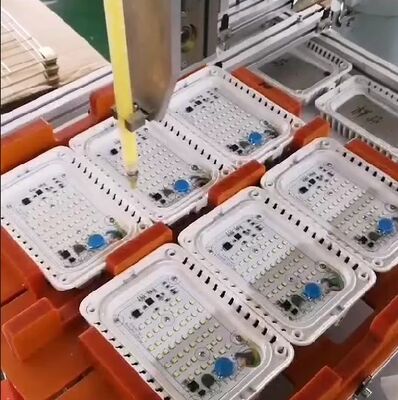

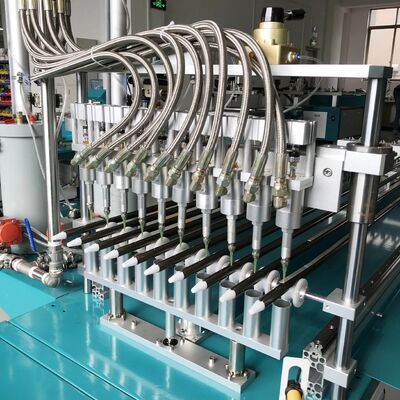

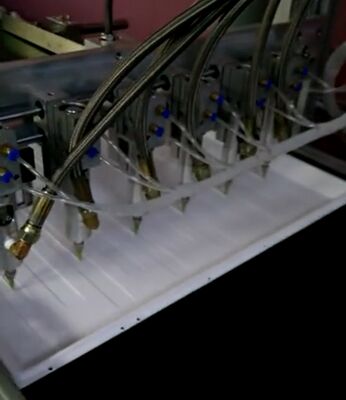

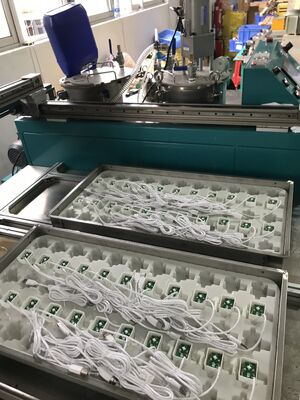

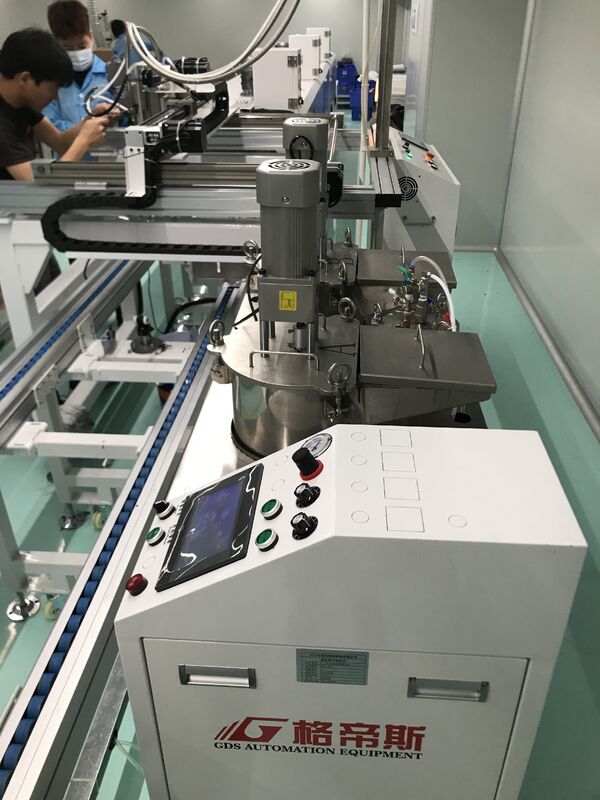

Machine Details
