High Precision 5:1 Black Epoxy Ratio Glue Potting Machine for Electric Inductor Coils

Name: High Precision 5:1 Black Epoxy Ratio Glue Potting Machine for Electric Inductor Coils
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: MG-8080
Availability: InStock

Brand Name:	GDS
Model Number:	MG-8080
MOQ:	1 piece
Price:	CONTACT US
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Glue Potting Machine

Application:

Electric Inductor Coil

Function:

Automatically Metering And Potting AB Glue

Warranty:

1 Year

EXW Report:

Test Video Available

After-sales Service:

On-line Or On-site

Packaging Details:

plywood case

Supply Ability:

30Pcs/Mon

Highlight:

5:1 epoxy ratio glue potting machine

electric inductor coil potting machine

black epoxy glue potting equipment

Product Description

Automatic Glue Dispensing for Water Pump with High Precision Glue Potting

High Precision Glue Potting Machine featuring 5 to 1 Black Epoxy Ratio, specifically engineered for electric inductor coil production applications.

Machine Overview

The 5:1 black epoxy glue potting machine is engineered for high-precision encapsulation of electric inductor coils, combining robust insulation performance with automated production adaptability.

Key Technical Specifications

Precision ratio control: Automated dual-component metering system ensures accurate 5:1 epoxy resin-hardener mixing (±1% deviation), maintaining viscosity stability for void-free encapsulation
Industrial-grade durability: Reinforced stainless-steel dispensing head withstands carbon-fiber-loaded epoxy compounds with high positional repeatability
Adaptive programming: Multi-axis robotic arm with 1000-path memory accommodates diverse coil geometries (10-200 mm diameter), ensuring 99% coverage accuracy

Machine Features

Fully automated metering, proportioning, mixing, and dispensing operation
Two 304 stainless steel containers for separate A and B glue storage to prevent solidification
3-axis mechanical hands with high precision linear movement modules for accurate positioning
Touch screen operation with handheld teaching programming case for easy operation
Customizable fixtures and glue delivery heads to match specific product requirements

Technical Parameters

Model	MG-8080
Working Range	0～500mm/sec
Repeat Accuracy	±0.02mm
Mixing Proportion	100:100～100:10(1:1~10:1)
Metering Method	Precise Gear Pump or Screw Pump
Mixing Method	Static Mixing
Mixing Accuracy	±1%
Glue Extrusion Accuracy	±1%
Glue Container Capacity	30L 304 Stainless Barrel
Glue Viscosity	Max≤20000CPS
Glue Additive Proportion	MAX≤100(Glue):100(Additive)(1:1)
Glue Additive Size	Max≤400tsp
Control Mode	PLC+Handhold Teaching Programming Case+Touch Screen
Programming	Teaching Programming
Program Capacity	At least 100 unit, 4000 points/unit
Transmission Method	Steeping Motor+Synchronous Belt+Linear Guide-way
Working Pressure	0.5-0.8Mpa
Working Power	AC220V 50HZ/2000W (stirring, vacuuming, heating not included)
Working Temperature	0-40℃
Working Humidity	20-90% no condensation
Dimension	1680x1200x1600 mm (WxDxH)
Weight	About 350KG
Optional Functions	Glue container stirring, pre-heating, vacuum degassing, self-cleaning

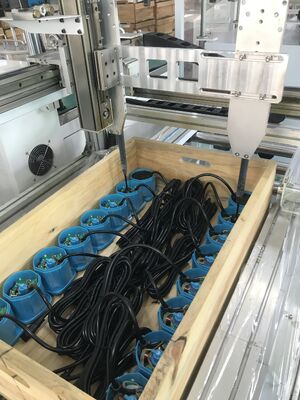

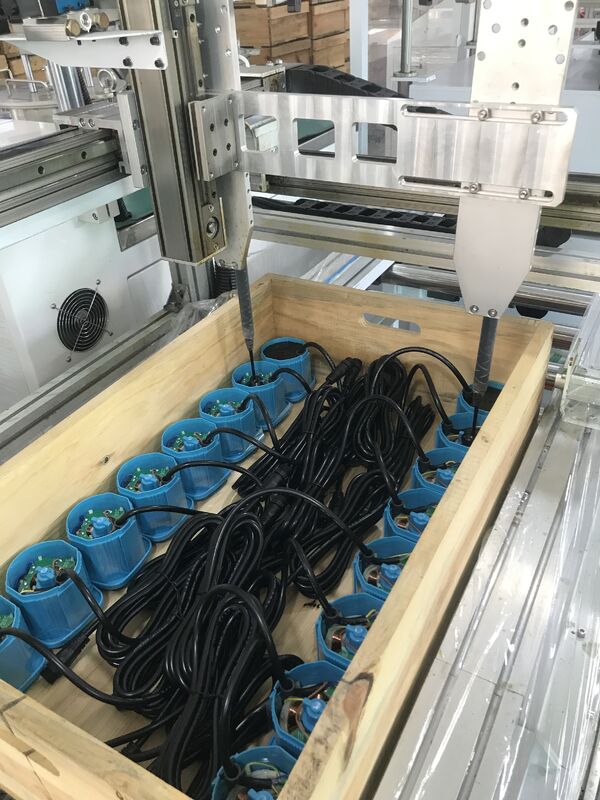

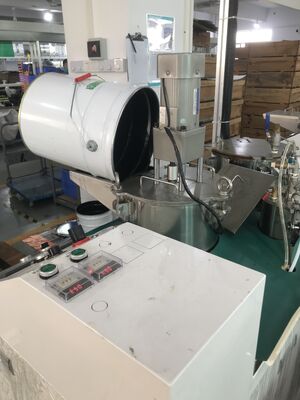

Machine Details
