Glue Dispensing Robot designed for silicone glue application on 2X2 backlit panel lights with independent control of 8 dispensing heads

Name: Glue Dispensing Robot designed for silicone glue application on 2X2 backlit panel lights with independent control of 8 dispensing heads
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: HTD-600-8
Availability: InStock

Brand Name:	GDS
Model Number:	HTD-600-8
MOQ:	1 PIECE
Price:	Contact US
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name:

Glue Dispensing Machine

Application:

Back-lit Panel Light

Function:

Dispensing Glue

EXW Report:

Test Video Available

After-sales Service Provided:

On-line Or On-site

Warranty:

1 Year

Packaging Details:

plywood case

Supply Ability:

30PCS/Month

Product Description

8 heads glue dispensing robot for 2X2 back-lit panel light production glue application

Machine Description

2X2 back-lit panel light assembly process includes the steps of bonding PCB strips to the housing with silicone glue. Some panel light manufacturers use 6 PCB strips, some use 8 PCB strips. No matter in which number, silicone glue application is necessary. GDS 8 heads glue dispensing robot is designed to meet the panel light manufacturers demand of applying 8 glue lines for the housing at one time. It can perfectly dispense 8 straight silicone line correspondingly for 8 PCB strips in a quick and even motion. 8 silicone dispensing heads can be controlled independently. Operator is free to use any of them based on real production requirements.

Machine Features

Floor stand design with castor, easy to move to match assembly line
Fixed working platform, convenient to pick and place work-piece
wide working range(600*600MM), can fit for one piece panel
program setting is easy to learn and operate;
Glue flow is stable without leakage anddrawing.

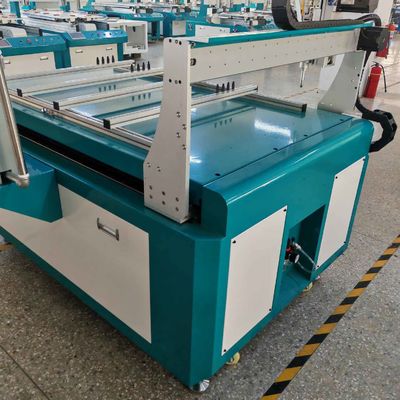

Glue Dispensing Robot designed for silicone glue application on 2X2 backlit panel lights with independent control of 8 dispensing heads 0

Technical Parameters

Model	HTD-600-8
MCU	Text Controller
Programming	Teaching Programming
Drive Mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	600600100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	About 10000 units
Dimension(LWH)	7006501200mm
Weight	135Kg
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

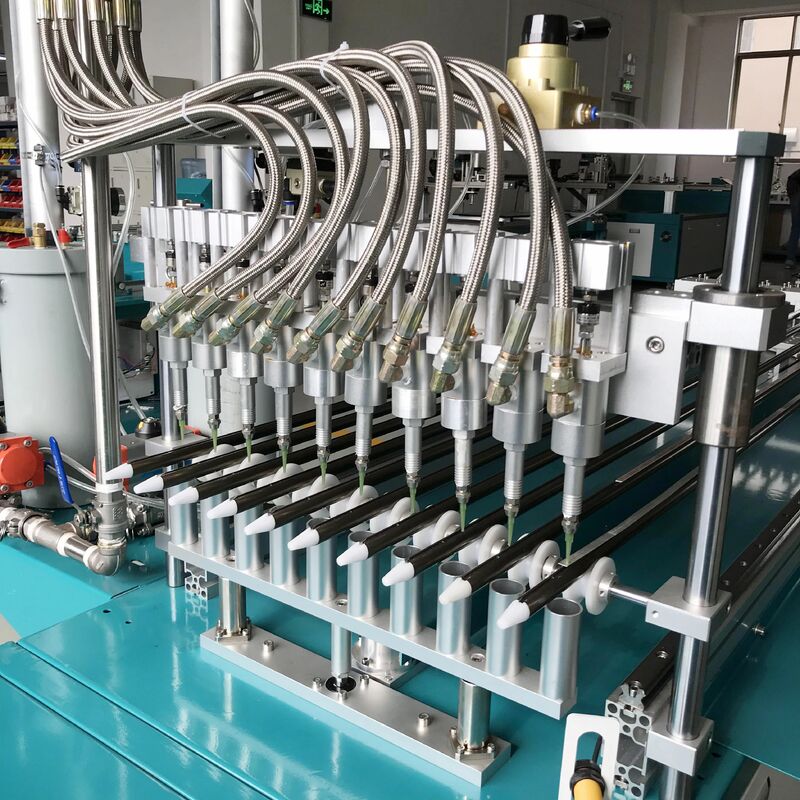

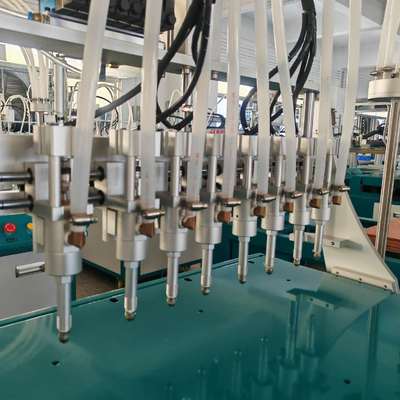

Machine Details

Glue Dispensing Robot designed for silicone glue application on 2X2 backlit panel lights with independent control of 8 dispensing heads 1
