Glue Dispensing Robot
Created with Pixso. High Precision Glue Dispensing Robot with 500mm/s Speed and 600*600mm Working Range for Automated Adhesive Application
name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

High Precision Glue Dispensing Robot with 500mm/s Speed and 600*600mm Working Range for Automated Adhesive Application

Brand Name: GDS
Model Number: TD-6060
MOQ: 1 PIECE
Price: CONTACT US
Delivery Time: 10 days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Max Moving Speed:
500mm/sec
Repeat Accuracy:
±0.02mm
Working Range:
600*600*100mm
Working Power:
AC220V/50～60Hz/150W
Working Air Pressure:
0.4 ~ 0.6Mpa
Adhesive Thickness:
0.5-1.2mm
Packaging Details:
plywood case
Supply Ability:
30PCS/mon
Product Description
Adhesive Application for Electric Oven Production Using Automatic Glue Dispensing Robots
Machine Description

Electric oven for home use or commercial use have many parts assembled by applying adhesives like hot-melt glue or silicone to get better bonding or sealing performance. If glue process done by manual operation, the efficiency may not satisfy manufacturers' requirment. GDS automatic glue dispensin robot can address the problem of low speed, low quality, and glue waste by following machine advantages:

  • Achieving application speeds up to 500mm/s
  • Reducing adhesive waste by 40% compared to manual methods
  • Executing pre-programmed dispensing paths with millimeter precision
  • Maintaining consistent adhesive thickness (0.5-1.2mm)

This advanced robotic glue dispensing solution enhances production efficiency by times percentage while ensuring superior bond quality. By replacing error-prone manual operations, the system guarantees repeatable precision across food warming table batches, making it an essential automation tool for modern household appliance manufacturing.

Machine Features
  • equipped industrial PLC controller, for different glue with different settings ensure the best performance;
  • replace manual silicone application
  • floor-stand design with wide working range(600*600MM), fit for small size work-piece;
  • glue flow control is stable without leakage and drawing.
  • get better water-proof and bonding performance
  • equipped with small hand programming controller
  • make the gluing process easy to accelerate
  • can fit for different brand silicone in 300ml package or 2600ml package
High Precision Glue Dispensing Robot with 500mm/s Speed and 600*600mm Working Range for Automated Adhesive Application 0
Technical Parameters
model HTD-600
MCU 3 axis movement controller
programming teaching programming
drive mode Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(X*Y*Z) 600*600*100mm
Max Moving Speed MAX 500mm/sec
Repeat Accuracy ±0.02mm
Program Memory Capacity Program Memory Capacity
Dimension(L*W*H) 700*650*1200mm
Working Power AC220V/50～60Hz/150W
Working Air Pressure 0.4 ~ 0.6Mpa(no condensation)
Working Temperature and Humidity Temperature: 0 ~ 40℃ Humidity:20 ~ 90%
Glue applicable

300ml package silicone or 2600ml package silicone

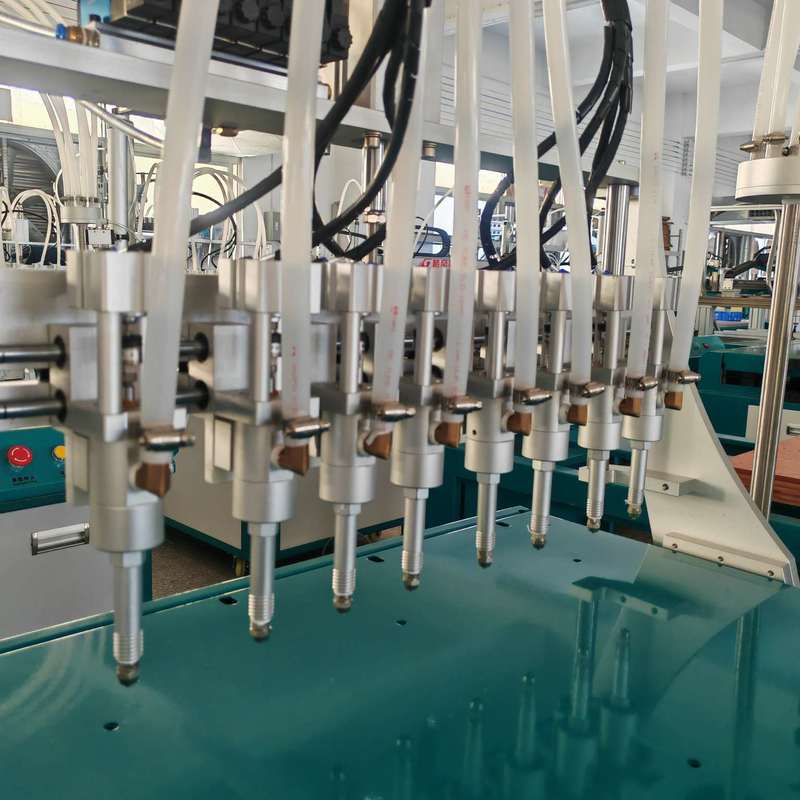

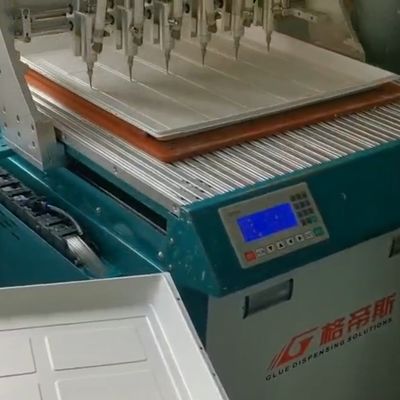

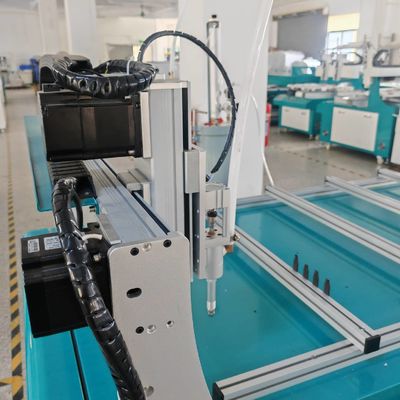

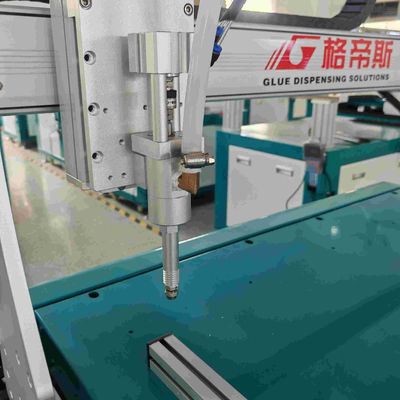

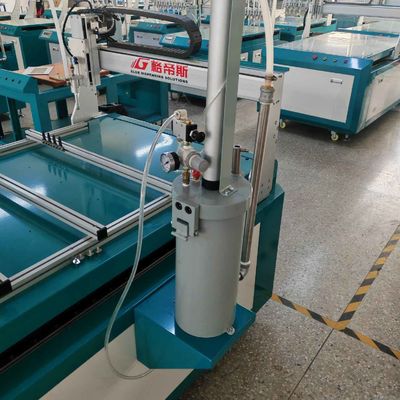

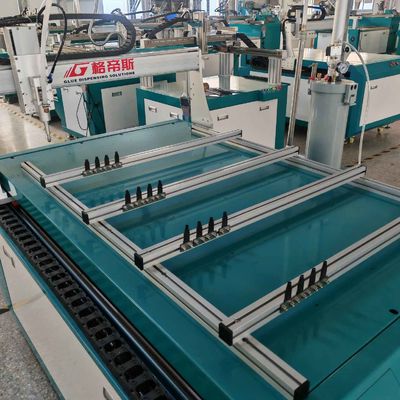

Machine Details
High Precision Glue Dispensing Robot with 500mm/s Speed and 600*600mm Working Range for Automated Adhesive Application 1
High Precision Glue Dispensing Robot with 500mm/s Speed and 600*600mm Working Range for Automated Adhesive Application 2
