3 Axis Dispensing Robot with 600*600mm Working Range, ±0.02mm Repeat Accuracy, and 500mm/sec Max Speed for Solar Panel Assembly

Name: 3 Axis Dispensing Robot with 600*600mm Working Range, ±0.02mm Repeat Accuracy, and 500mm/sec Max Speed for Solar Panel Assembly
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: HTD-600
Availability: InStock

Brand Name:	GDS
Model Number:	HTD-600
MOQ:	1 PIECE
Price:	CONTACT US
Delivery Time:	10 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Working Range:

600*600*100mm

Max Moving Speed:

500mm/sec

Repeat Accuracy:

±0.02mm

Working Power:

AC220V/50～60Hz/150W

Working Air Pressure:

0.4 ~ 0.6Mpa

Working Temperature:

0 ~ 40℃

Packaging Details:

plywood case

Supply Ability:

30PCS/mon

Highlight:

3 Axis Dispensing Robot for solar panels

High precision dispensing robot 600mm range

Fast 500mm/sec dispensing robot industrial

Product Description

3 Axis Dispensing Machine with Precise Adhesive Dispensing Capabilities for Solar Panel Frame Assembly Automation

Machine Overview

Elevate your solar panel manufacturing with our 3-axis glue dispensing robot, engineered to deliver flawless adhesive application for solar frame assembly. Designed for high-volume production, this automated system ensures precision, durability, and cost-efficiency in bonding aluminum or composite frames, critical for weatherproofing and structural integrity in photovoltaic (PV) modules.

Key Features & Benefits

Ultra-Precise Adhesive Control: Motor-driven XYZ-axis system guarantees high-level accuracy, applying uniform glue beads for airtight seals on solar panel frames
Material Versatility: Compatible with versatile silicone, supporting diverse thermal expansion and load-bearing requirements
Durable Construction: IP55-rated components and stainless-steel frame withstand dust, humidity, and temperature fluctuations
Industrial PLC Controller: Different glue settings ensure optimal performance
Stable Glue Flow: No leakage or drawing issues
Easy Programming: Equipped with hand programming controller for accelerated gluing processes
Flexible Material Compatibility: Works with different brand silicones in 300ml or 2600ml packages

Performance Advantages

40% Faster Cycle Times: Boost throughput for utility-scale solar projects with automated, error-free dispensing
30% Material Savings: Precision dosing reduces adhesive waste, lowering operational costs
Zero Leak Guarantee: Automated path planning eliminates gaps in critical sealing areas, ensuring IP68-rated protection

Applications in Solar Production

Airtight bonding of aluminum/composite frames to PV module edges
Weatherproof sealing for junction boxes and cable entry points
Structural reinforcement of mounting clips and corner connectors

Technical Specifications

Parameter	Specification
Model	HTD-600
MCU	3 axis movement controller
Programming	Teaching programming
Drive Mode	Precise Stepping Motor + Synchronous Belt + Linear Guide-way
Working Range (XYZ)	600600100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	Program Memory Capacity
Dimension (LWH)	7006501200mm
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity: 20 ~ 90%

Glue applicable: 300ml package silicone or 2600ml package silicone

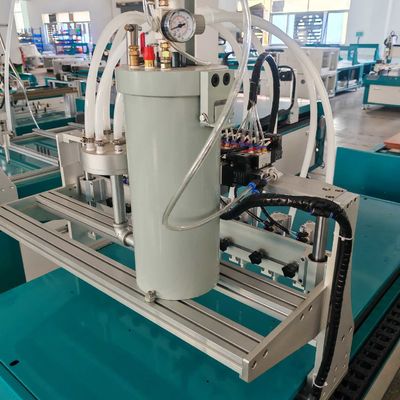

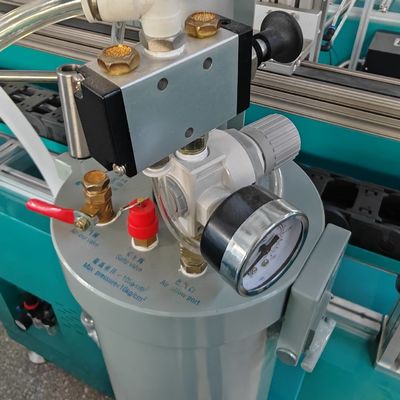

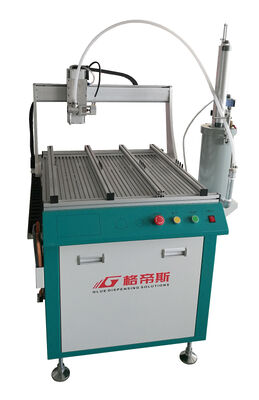

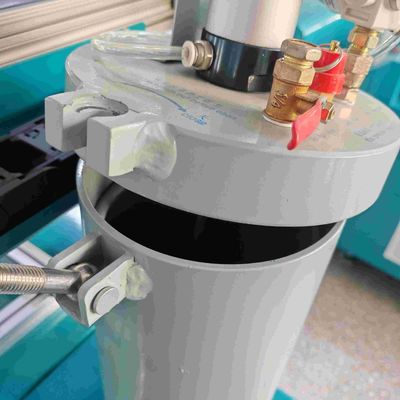

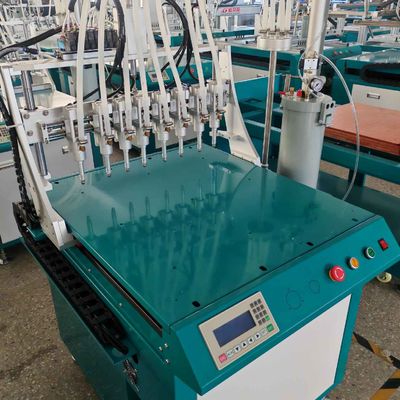

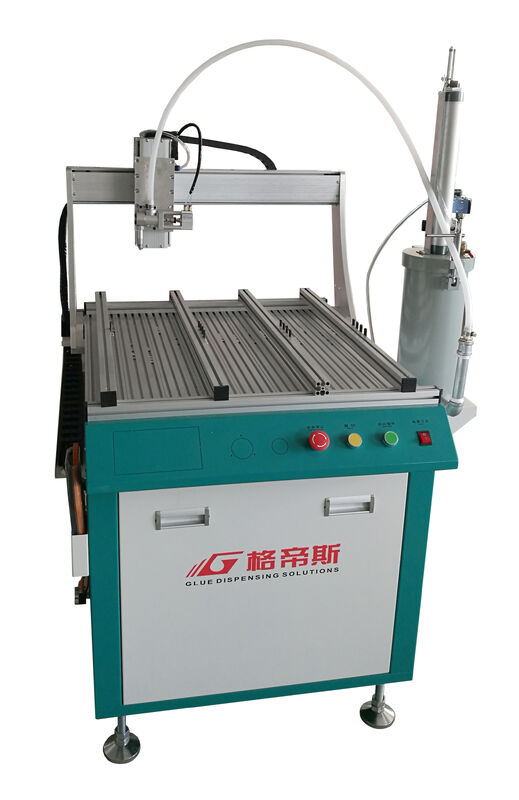

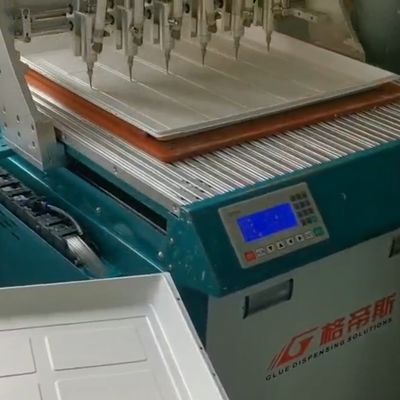

Product Images

Request a Free Demo to optimize your solar frame assembly line and achieve seamless, sustainable production!
